Front Floor Console Armrest Hinge Cover Replacement

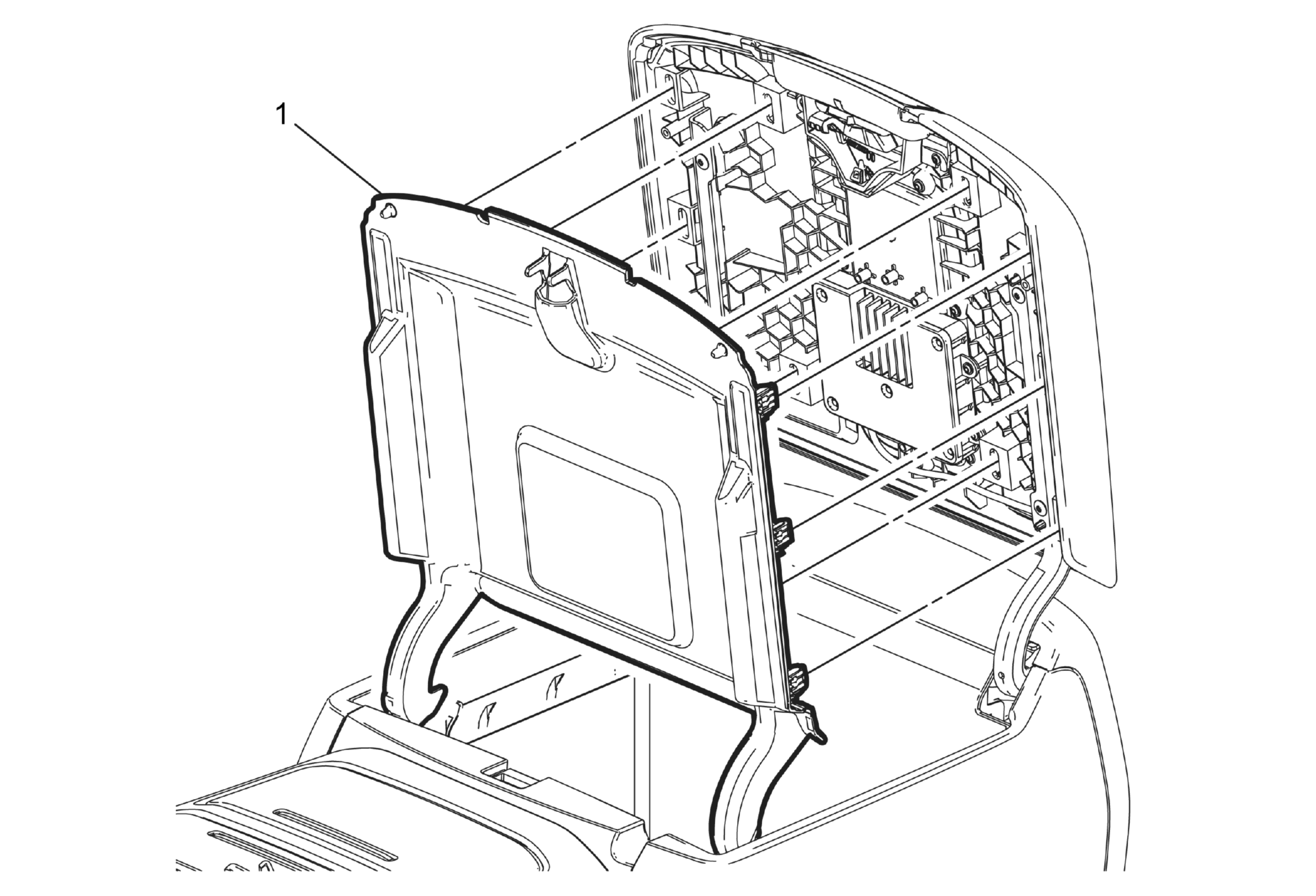

GM3633144Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Floor Console Armrest Hinge Cover
Procedure
Use a flat bladed plastic trim tool in order to release the retainer clips securing the hinge cover to the outer armrest.
