S70L Steering Wheel Controls Switch - Left
 Courtesy of GENERAL MOTORS COMPANY
|

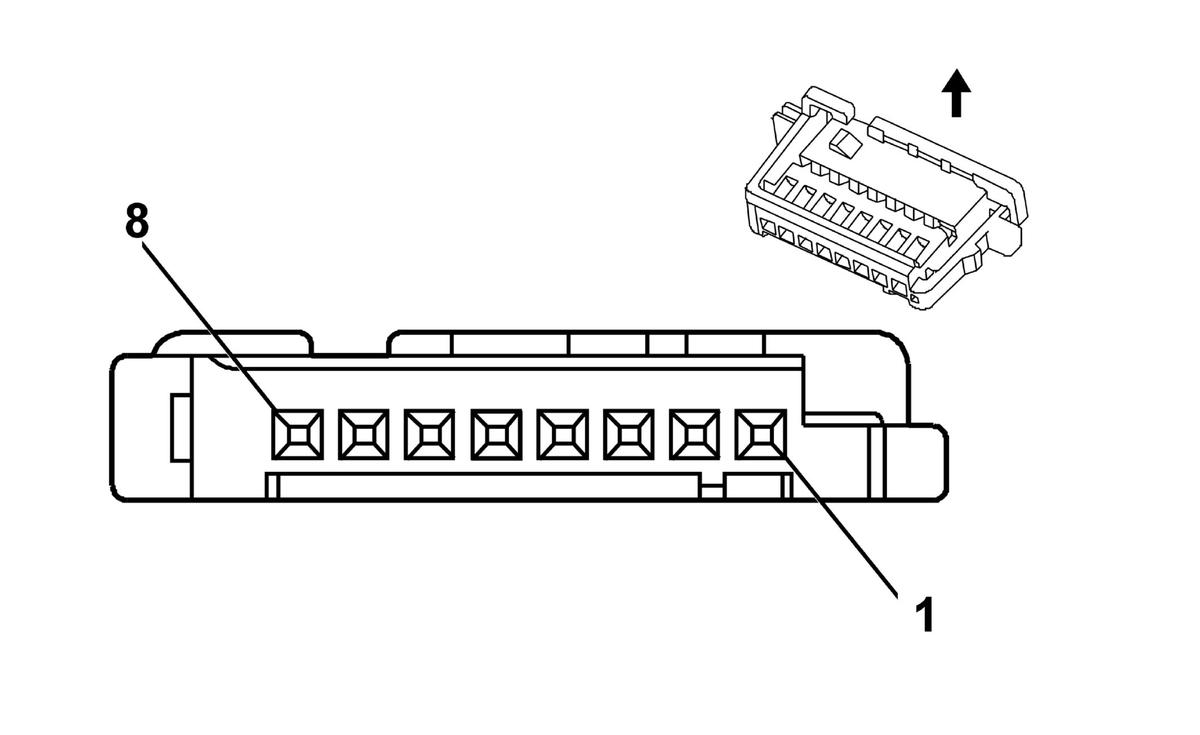

Connector Part Information
- Harness Type: Steering Wheel
- OEM Connector: 1743282-1
- Service Connector: Service by Harness
- Description: 8-Way F 0.64 Micro-Quadlock Series (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
WH/RD |
1444 |
12V Reference |
I |
- |
| 2 |
0.35 |
GY/WH |
3153 |
Lane Departure Warning Disable Switch Signal |
I |
- |
| 3 |
0.35 |
BN/GN |
1884 |
Cruise Control Set/Coast/Resume/Accelerate Switch Signal |
I |
- |
| 4 - 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
0.5 |
YE |
6817 |
LED Backlight Dimming Control |
I |
- |
| 7 |
0.5 |
BK |
1550 |
Ground |
I |
- |
| 8 |
- |
- |
- |
Not Occupied |
- |
- |
