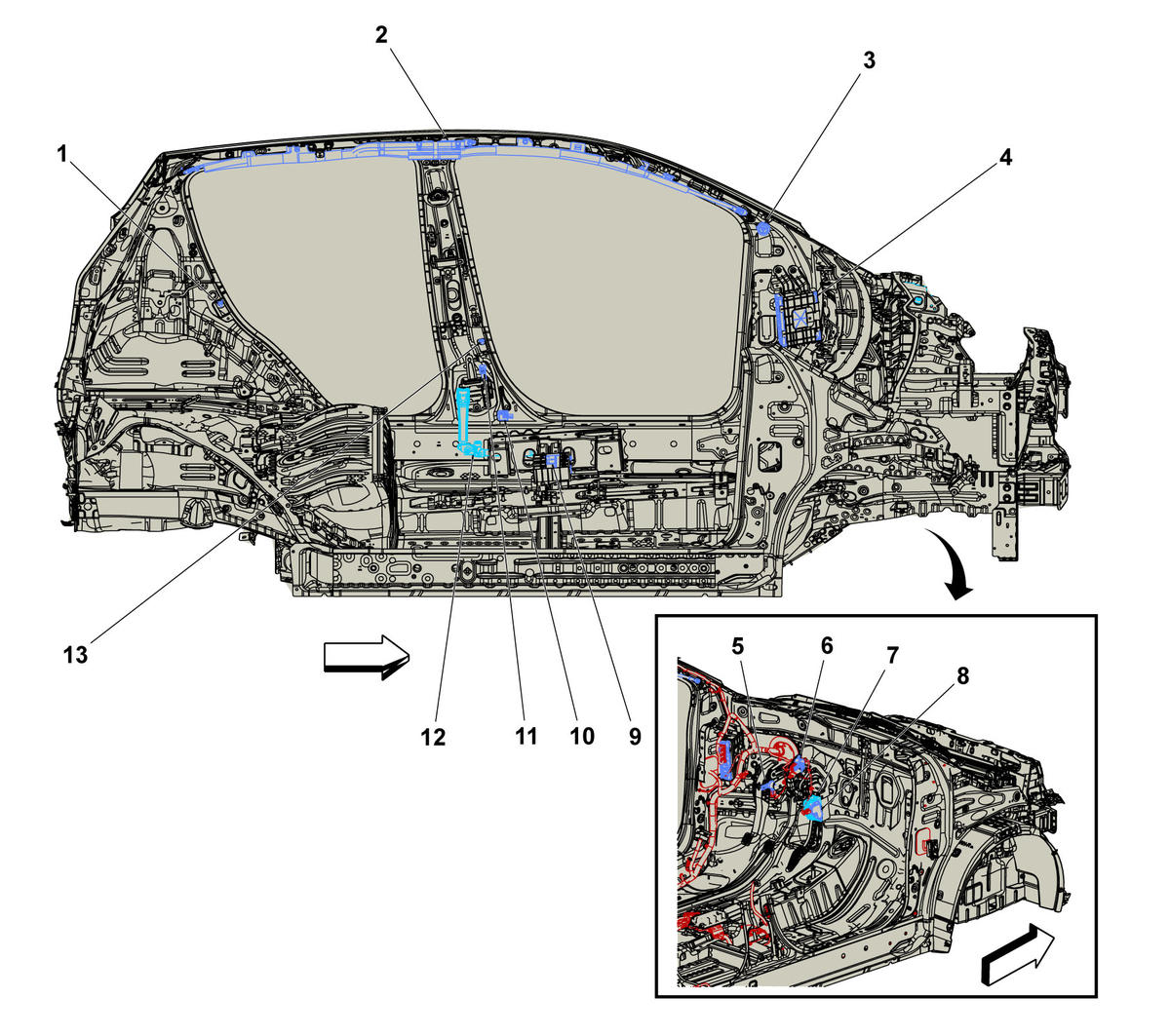

Left Side of the Passenger Compartment Components (LHD)

Courtesy of GENERAL MOTORS COMPANY

Items
1. B28RR Door Ajar Switch - Right Rear B28RR Door Ajar Switch - Right Rear
2. F105L Roof Rail Air Bag - Left F105L Roof Rail Air Bag - Left (AYC) , or F105L Roof Rail Air Bag - Left (AYF)
3. P19H Speaker - Left Front Tweeter P19H Speaker - Left Front Tweeter
4. K9 Body Control Module K9 Body Control Module X1 , or K9 Body Control Module X2 , or K9 Body Control Module X3 , or K9 Body Control Module X4 , or K9 Body Control Module X5 , or K9 Body Control Module X6 , or K9 Body Control Module X7
5. B25B Clutch Pedal Position Sensor (MR7) B25B Clutch Pedal Position Sensor (MR7)
6. B22 Brake Pedal Position Sensor (MR7/MR8) B22 Brake Pedal Position Sensor (MR7) , or B22 Brake Pedal Position Sensor (MR8)
7. K71 Transmission Control Module (MR8) K71 Transmission Control Module X1 , or K71 Transmission Control Module X2
8. B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor
9. K73 Telematics Communication Interface Control Module (UE1) K73 Telematics Communication Interface Control Module X1 (UE1 (Late Production)) , or K73 Telematics Communication Interface Control Module X2 (UE1 (Early Production))
10. B63LM Side Impact Sensor - Left Middle (AYF) B63LM Side Impact Sensor - Left Middle (AYF)
11. F112D Seat Belt Retractor Pretensioner - Driver (AWV/AYC) F112D Seat Belt Retractor Pretensioner - Driver (AK5/AJ7/AYC/AYF)
12. F113D Seat Belt Anchor Pretensioner - Driver F113D Seat Belt Anchor Pretensioner - Driver (AK5/AJ7/AYC/AYF)
13. B28D Door Ajar Switch - Driver B28D Door Ajar Switch - Driver
