Evaporative Emission Canister Purge Solenoid Valve Replacement

Courtesy of GENERAL MOTORS COMPANY

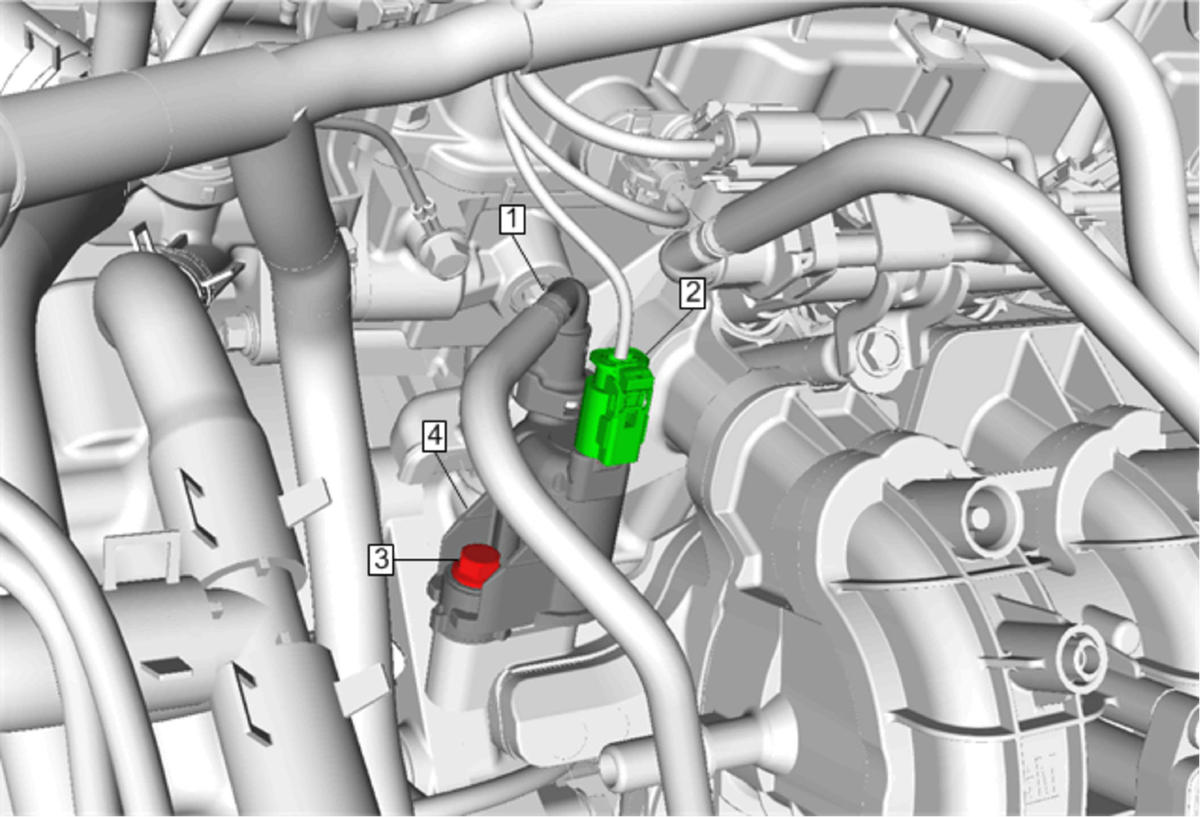

Callout	Component Name
Preliminary Procedure  Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
1	Evaporative Emission Pipe Connector. Procedure  Disconnect the evaporative emission pipe connector.
2	Evaporative Emission Canister Purge Solenoid Valve Electrical Connector Procedure  Disconnect the evaporative emission canister purge solenoid valve electrical connector.
3	Evaporative Emission Canister Purge Solenoid Valve Bolt CAUTION: Refer to Fastener Caution . Procedure  Remove the evaporative emission canister purge solenoid valve bolt. Tighten  10 N.m (89 lb in)
4	Evaporative Emission Canister Purge Solenoid Valve
