Upper Engine Block Disassemble
 Courtesy of GENERAL MOTORS COMPANY
|

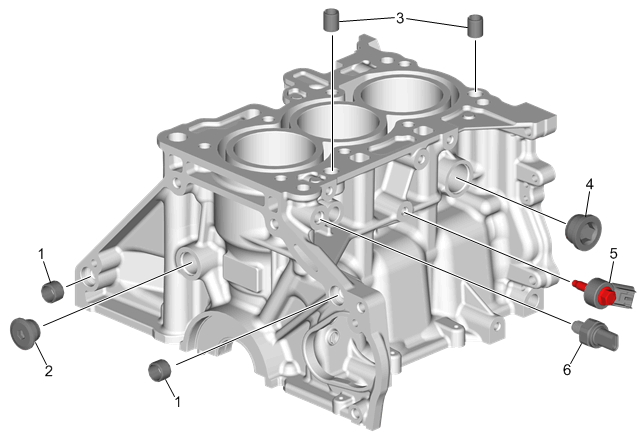

Upper Engine Block Disassemble 1
| Callout |
Component Name |
| 1 |
Transmission Locating Pin[2x] |
| 2 |
Engine Block Oil Gallery Plug |
| 3 |
Cylinder Head Locating Pin[2x] |
| 4 |
Engine Block Coolant Drain Hole Plug |
| 5 |
Knock Sensor |
| 6 |
Engine Oil Pressure Sensor |
 Courtesy of GENERAL MOTORS COMPANY
|

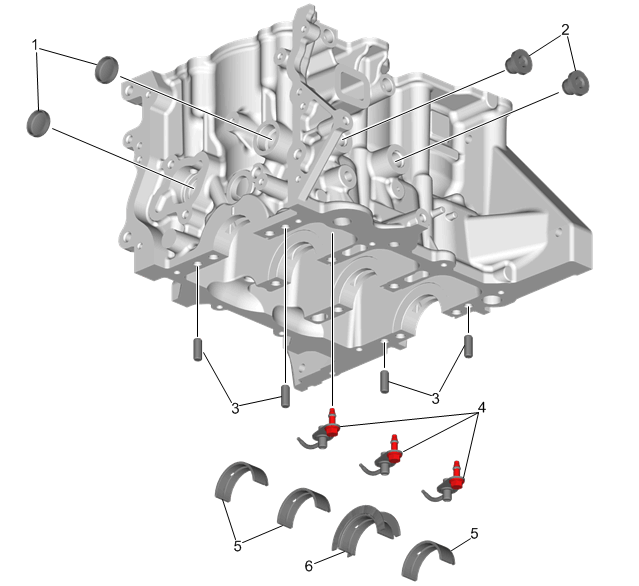

Upper Engine Block Disassemble 2
| Callout |
Component Name |
| 1 |
Engine Block Core Hole Plug |
| 2 |
Engine Block Oil Gallery Plug[2x] |
| 3 |
Lower Crankcase Locating Pin[4x] |
| 4 |
Piston Oil Nozzle[3x] |
| 5 |
Crankshaft Upper Bearing[3x] |
| 6 |
Crankshaft Thrust Upper Bearing |
