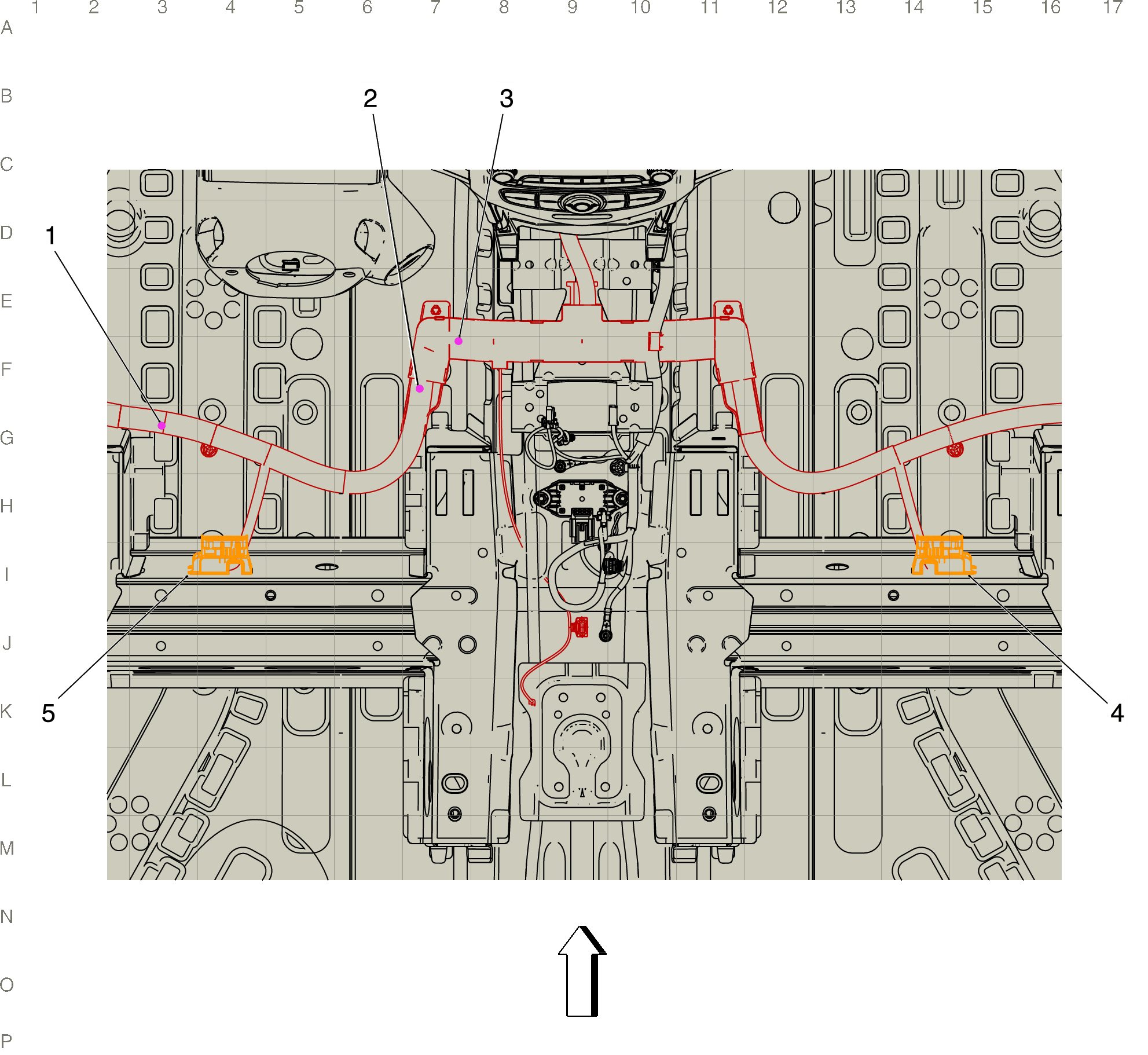

Center of Passenger Compartment Harness Routing

GM2654517Courtesy of GENERAL MOTORS COMPANY
Items
1. J334 Body Harness
2. J328 Body Harness
3. J329 Body Harness
4. X302 Body Harness to Passenger Seat Harness (20 cavities) X302 Body Harness to Passenger Seat Harness
5. X301 Body Harness to Driver Seat Harness (20 cavities) X301 Body Harness to Driver Seat Harness
