X301 Body Harness to Driver Seat Harness

GM2220410Courtesy of GENERAL MOTORS COMPANY

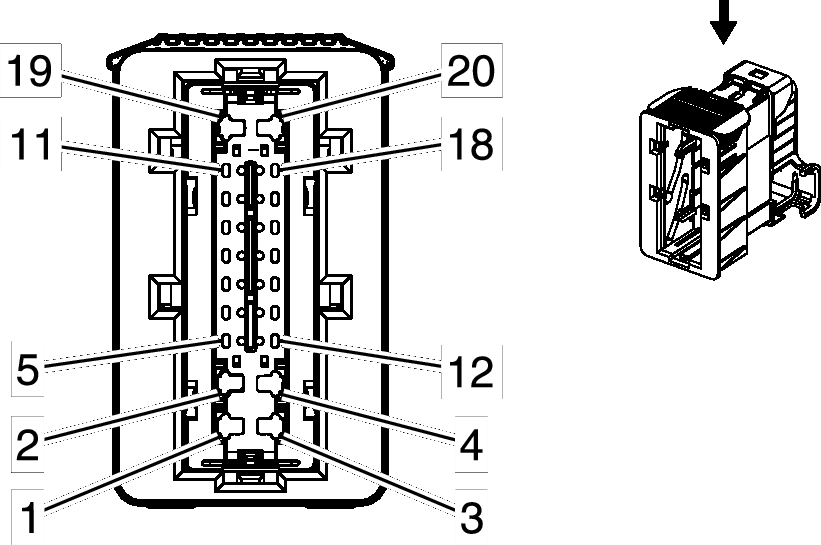

GM2480564Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type: Body
  • OEM Connector: 902873-01
  • Service Connector: 19300298
  • Description: 20-Way F 1.5, 2.8 Series (BK)
 Connector Part Information
  • Harness Type: Driver Seat
  • OEM Connector: 902874-00
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 20-Way M 1.6, 2.8 Timer Series (BK)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Name Core Crimp Insulation Crimp
I 13579988 J-35616-35 (VT) J-38125-12A Not Available Not Available Not Available Not Available
II 13579989 J-35616-2A (GY) J-38125-215A Not Available Not Available Not Available Not Available
III 13579990 J-35616-2A (GY) J-38125-215A Not Available Not Available Not Available Not Available
IV 13582256 J-35616-35 (VT) J-38125-12A Not Available Not Available Not Available Not Available
V 13588901 J-35616-2A (GY) J-38125-215A Not Available Not Available Not Available Not Available
VI Not Required J-35616-3 (GY) No Tool Required Not Required Not Required Not Required Not Required
VII Not Required J-35616-5 (PU) No Tool Required Not Required Not Required Not Required Not Required
VIII Not Required No Tool Required No Tool Required Not Required Not Required Not Required Not Required
Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
1 1.5
2.5		 BK
BK		 550
550		 I
I		 KA1+LHD-AMM
LHD+KA1+AMM		 Ground
Ground		 1 1.5
2.5		 BK
BK		 550
550		 VII
VII		 KA1+LHD-AMM
LHD+KA1+AMM
2 1 BN/BU 2479 IV KA1 Passenger Heated Seat Element Control 2 1 YE 2479 VII -
3 1 BU/BK 2433 IV KA1 Passenger Heated Back Element Low Reference 3 1
1		 BK/YE
BK		 2433
2433		 VII
VII		 KA1
-KA1
4 1.5 RD/BU 540 I KA1 Battery Positive Voltage 4 1.5 RD 540 VII -
5 0.5 OG/BN 238 V UH0/UH1 Driver Seat Belt Switch Signal
Driver Seat Belt Switch Signal		 5 0.5
0.5		 RD/GN
RD		 238
238		 VI
VI		 AYF+UH0/UH1
UH0/UH1
6 - - - - - Not Occupied 6 - - - - -
7 0.5 BK/OG 1363 V UH0/UH1 Driver Seat Belt Switch Low Reference
Driver Seat Belt Switch Low Reference		 7 0.5
0.5		 BK/RD
BK		 1363
1363		 VI
VI		 AYF+UH0/UH1
UH0/UH1
8 0.5 OG/BU 3068 III - Driver Side Impact Module High Control 8 0.5 YE 3068 VIII -
9 0.5 GN/OG 3069 III - Driver Side Impact Module Low Control 9 0.5 OG/GN 3069 VIII -
10 0.5 BK/GY 2435 V KA1 Passenger Heated Seat NTC Low Reference
Passenger Heated Seat NTC Low Reference		 10 0.5
0.5		 BK
BK/OG		 2435
2435		 VI
VI		 -KA1
KA1
11 0.5 WH/GY 2434 V KA1 Cushion NTC Signal
Passenger Heated Seat NTC Signal		 11 0.5
0.5		 RD
RD/OG		 7018
7018		 VI
VI		 -KA1
KA1
12 0.35 GN 5060 II - Low Speed GMLAN Serial Data 12 0.5 BU 5060 VI -
13 0.5 YE/OG 3482 III A69 Driver Seat Belt Anchor Pretensioner Low Control 13 0.5 BN 3482 VIII A69
14 0.5 OG/YE 3481 III A69 Driver Seat Belt Anchor Pretensioner High Control 14 0.5 BU 3481 VIII A69
15 - 19 - - - - - Not Occupied 15 - 19 - - - - -
20 1.5 RD/BU 3240 I AMM Battery Positive Voltage 20 1.5 RD/WH 2040 VII AMM
