Right Front of Passenger Compartment Harness Routing

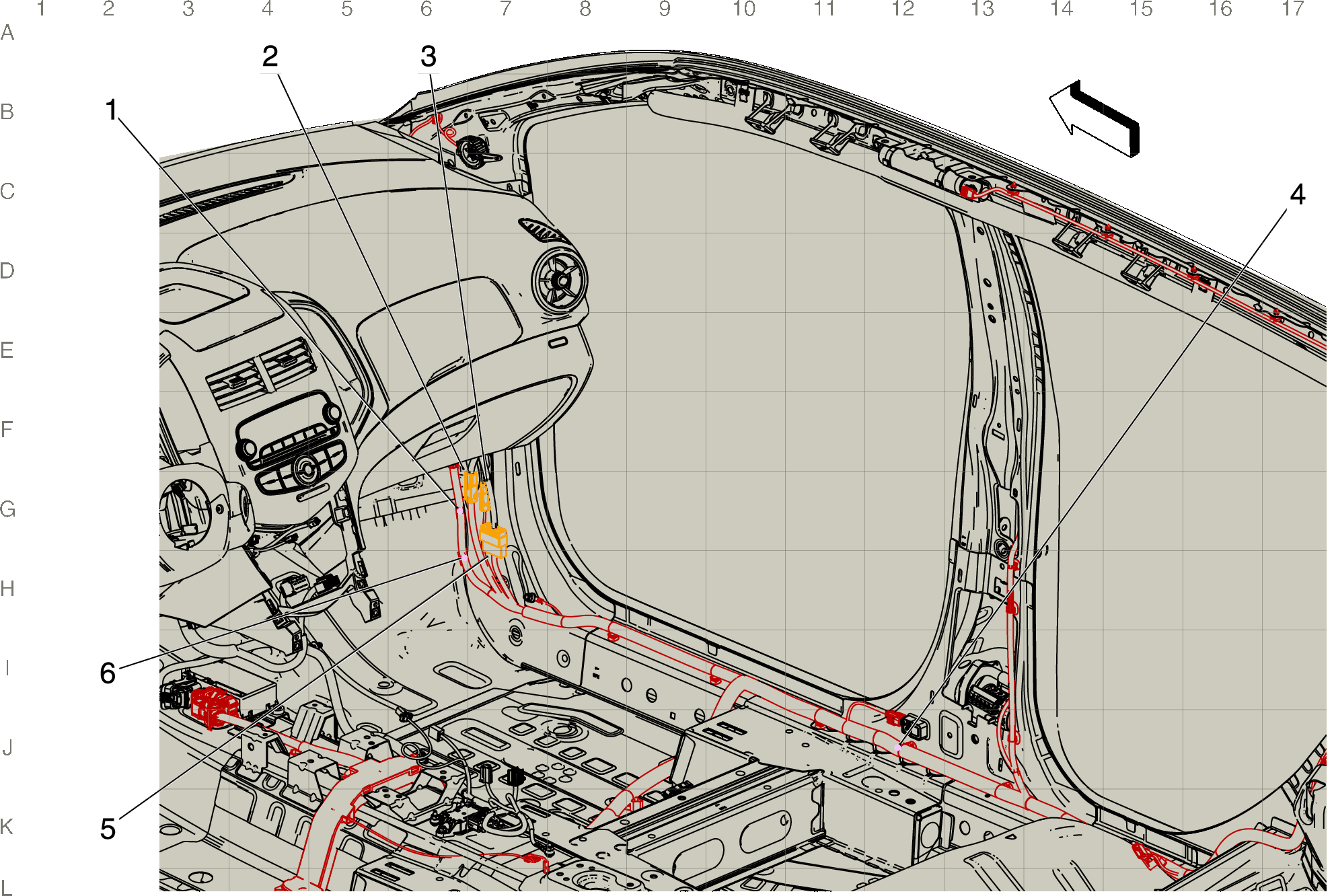

GM2732168Courtesy of GENERAL MOTORS COMPANY
Items
1. J232 Body Harness
2. X205 Instrument Panel Harness to Body Harness (COAX) X205 Body Harness to Instrument Panel Harness (-U2K)X205 Body Harness to Instrument Panel Harness (U2K)
3. X206 Instrument Panel Harness to Body Harness (COAX) X206 Instrument Panel Harness to Body Harness
4. J314 Body Harness
5. X200 Instrument Panel Harness to Body Harness (32 cavities) X200 Instrument Panel Harness to Body Harness
6. J231 Body Harness
