Passenger Door Harness Routing

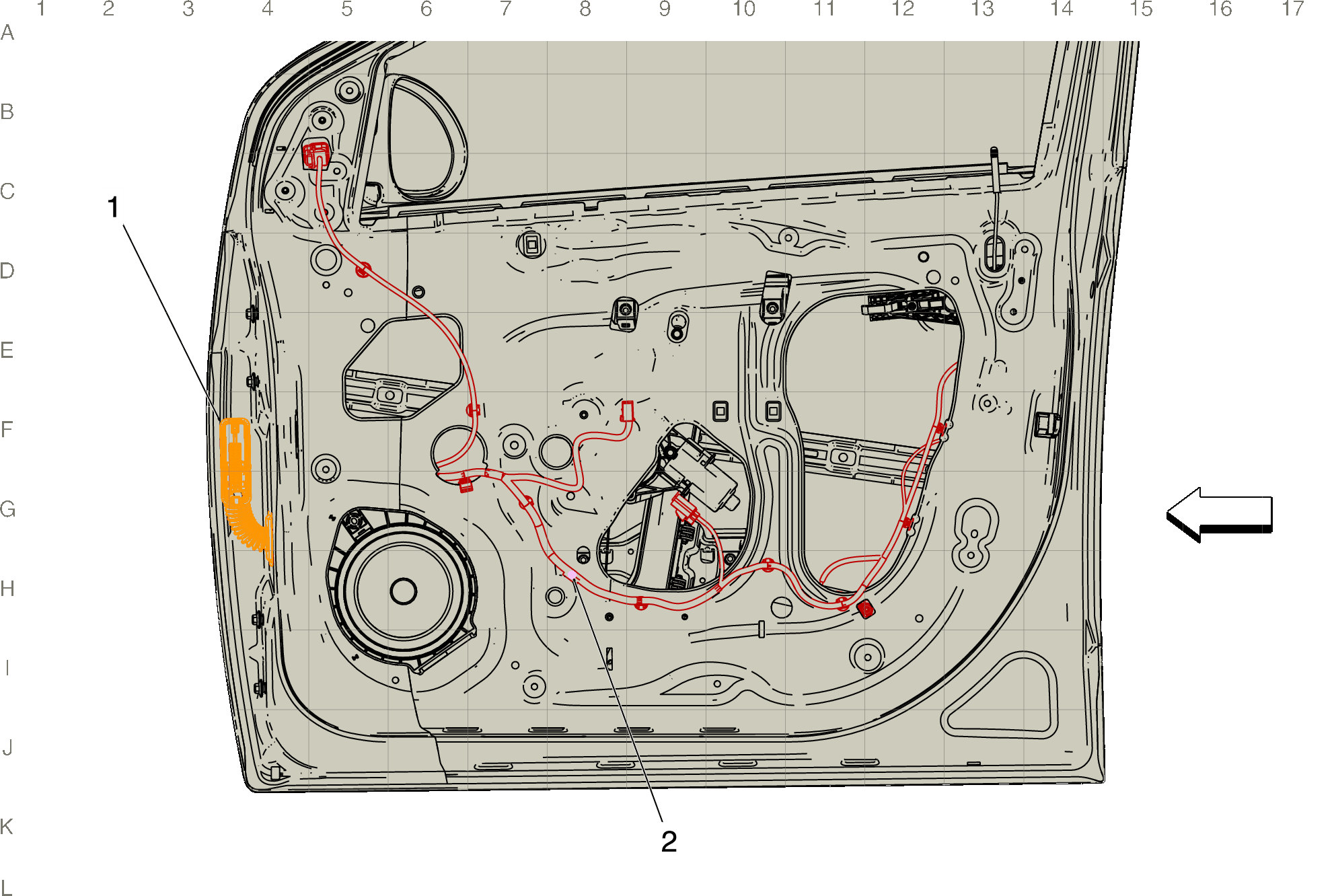

GM2537411Courtesy of GENERAL MOTORS COMPANY
Items
1. X600 Passenger Door Harness to Body Harness (30 cavities) X600 Passenger Door Harness to Body Harness
2. J600 Passenger Door (DG6)
