Luggage Compartment Harness Routing (Notchback)

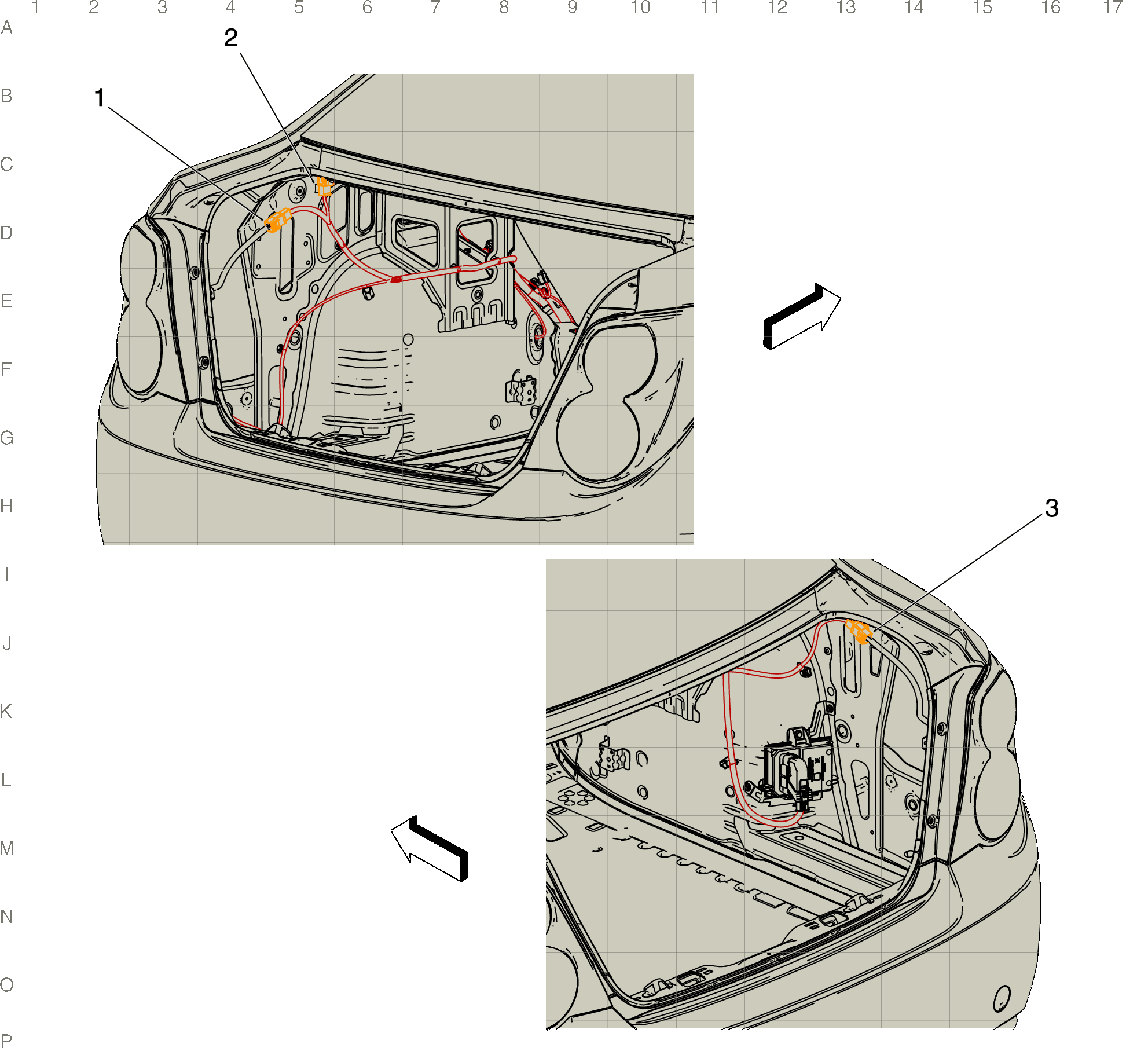

GM2541110Courtesy of GENERAL MOTORS COMPANY
Items
1. X405 Left Tail Lamp Harness to Body Harness (8 cavities) X405 Left Tail Lamp Harness to Body Harness
2. X900 Liftgate Harness to Body Harness (22 cavities) X900 Liftgate Harness to Body Harness (Hatchback)X900 Rear Compartment Lid Harness to Body Harness (Notchback)
3. X406 Right Tail Lamp Harness to Body Harness (8 cavities) X406 Right Tail Lamp Harness to Body Harness
