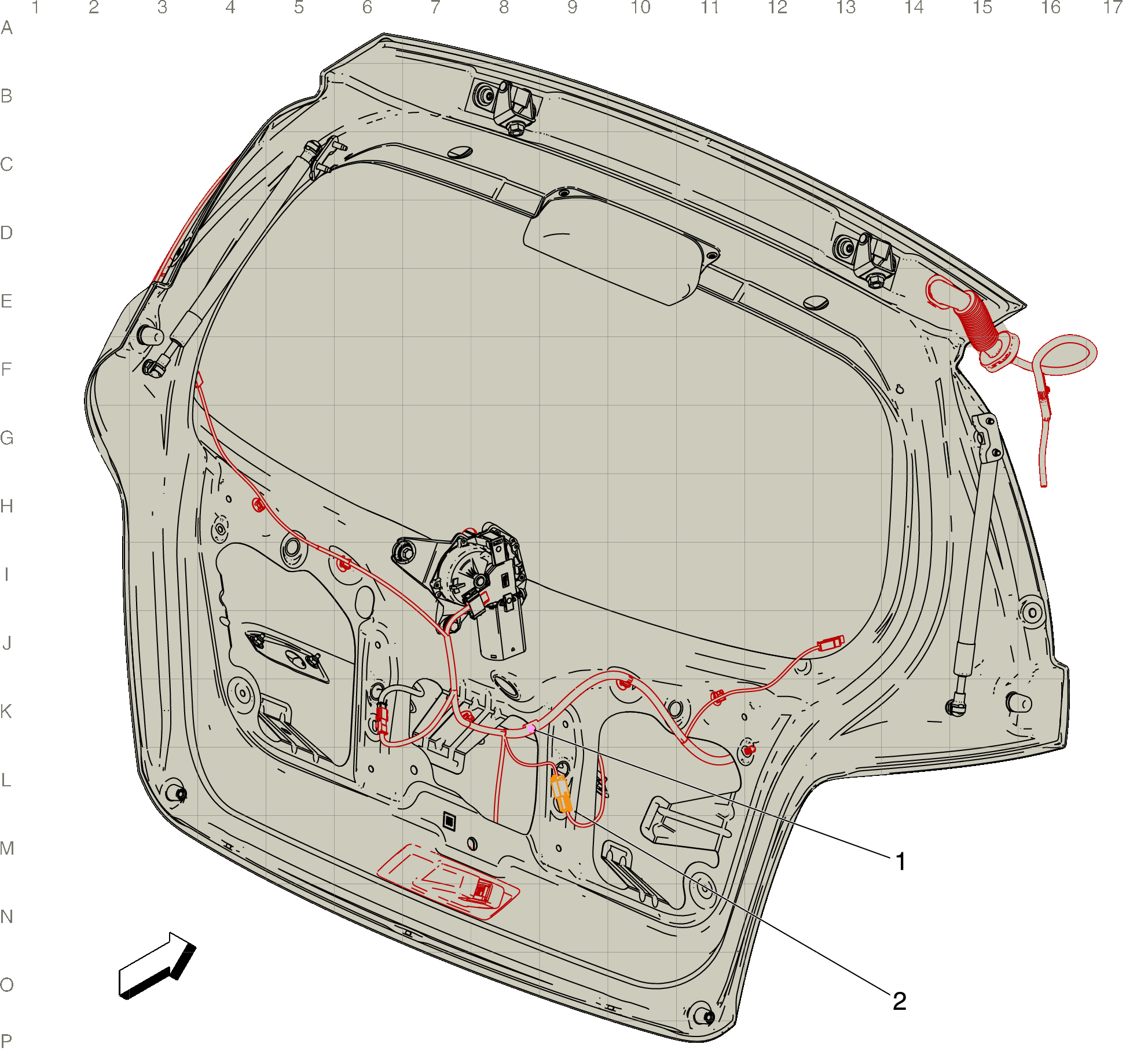

Liftgate Harness Routing (Hatchback)

GM2538942Courtesy of GENERAL MOTORS COMPANY
Items
1. J900 Liftgate
2. X901 Liftgate Harness to License Lamp Harness (2 cavities) X901 Liftgate Harness to License Lamp Harness (Hatchback)X901 Rear Compartment Lid Harness to License Lamp Harness (Notchback)
