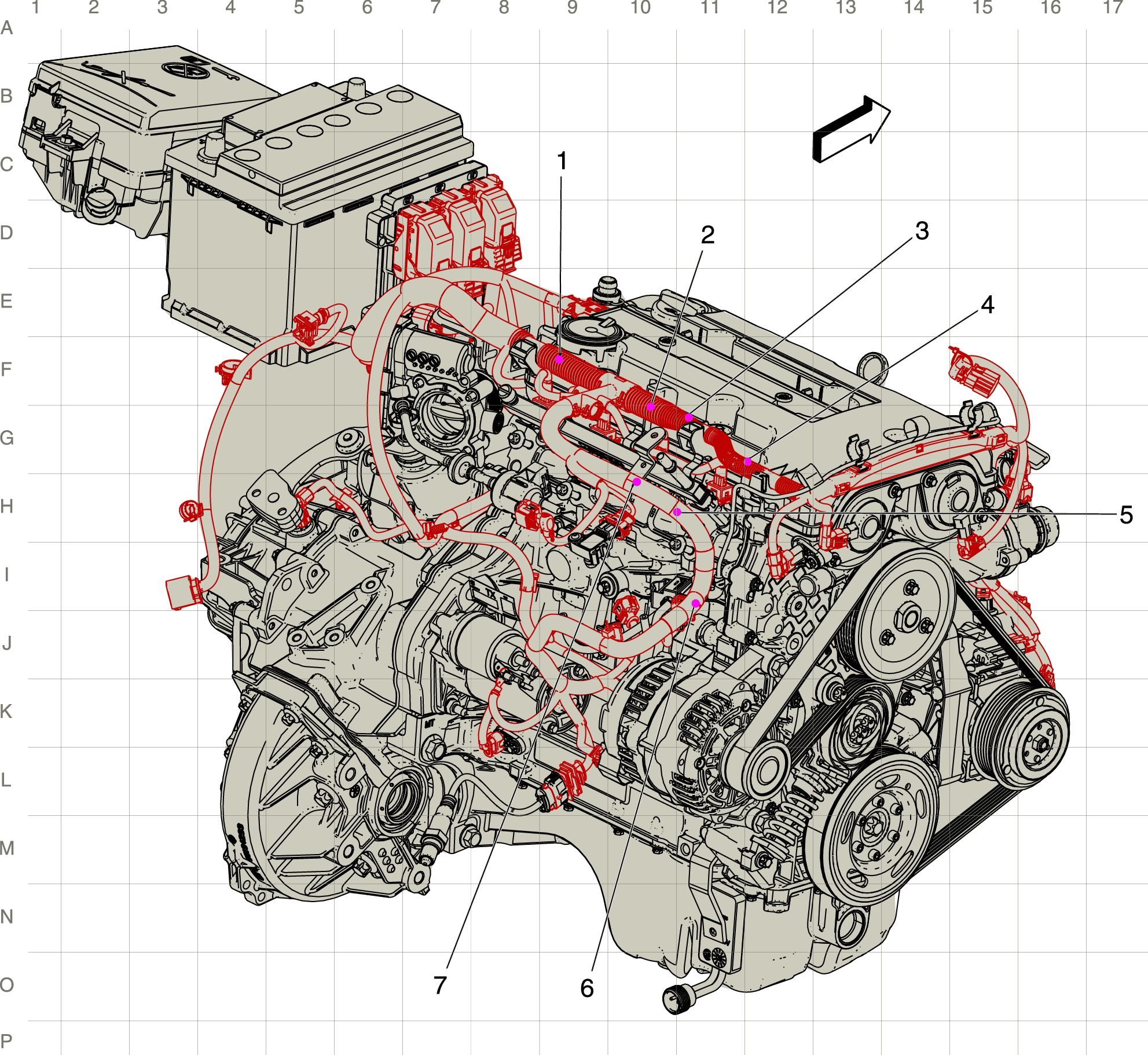

Engine Harness Routing - 1.4L Rear (LUV)

GM2969015Courtesy of GENERAL MOTORS COMPANY
Items
1. J118 Engine Harness
2. J128 Engine Harness (MH8)
3. J127 Engine Harness
4. J132 Engine Harness
5. J117 Engine Harness
6. J110 Engine Harness (MZ4)
7. J133 Engine Harness
