Fuel Tank Components

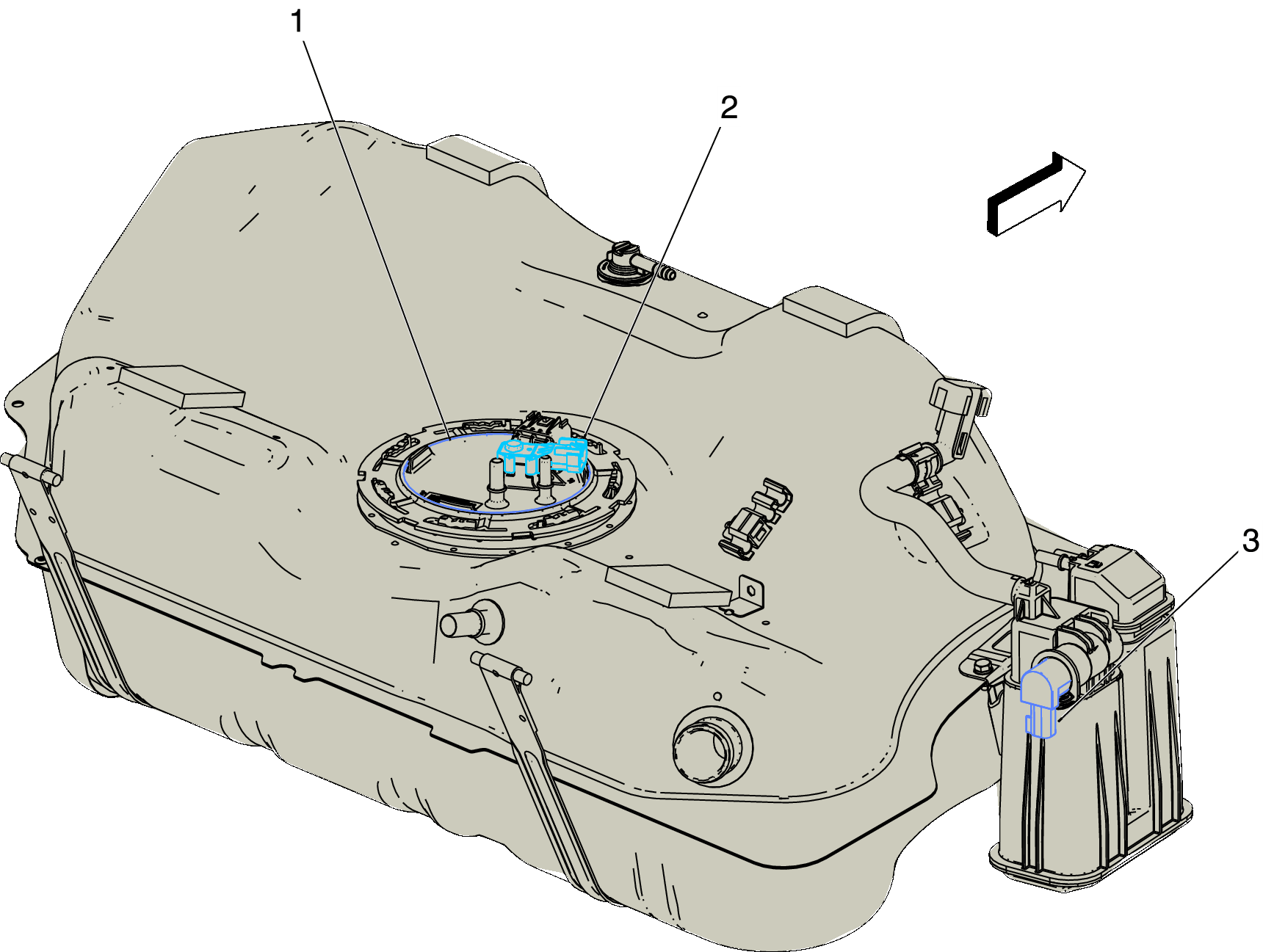

GM2540408Courtesy of GENERAL MOTORS COMPANY
Fuel Tank Components

Items
1. A7 Fuel Pump and Level Sensor Assembly A7 Fuel Pump and Level Sensor Assembly
2. B150 Fuel Tank Pressure Sensor B150 Fuel Tank Pressure Sensor
3. Q13 Evaporative Emission Vent Solenoid Valve Q13 Evaporative Emission Vent Solenoid Valve
