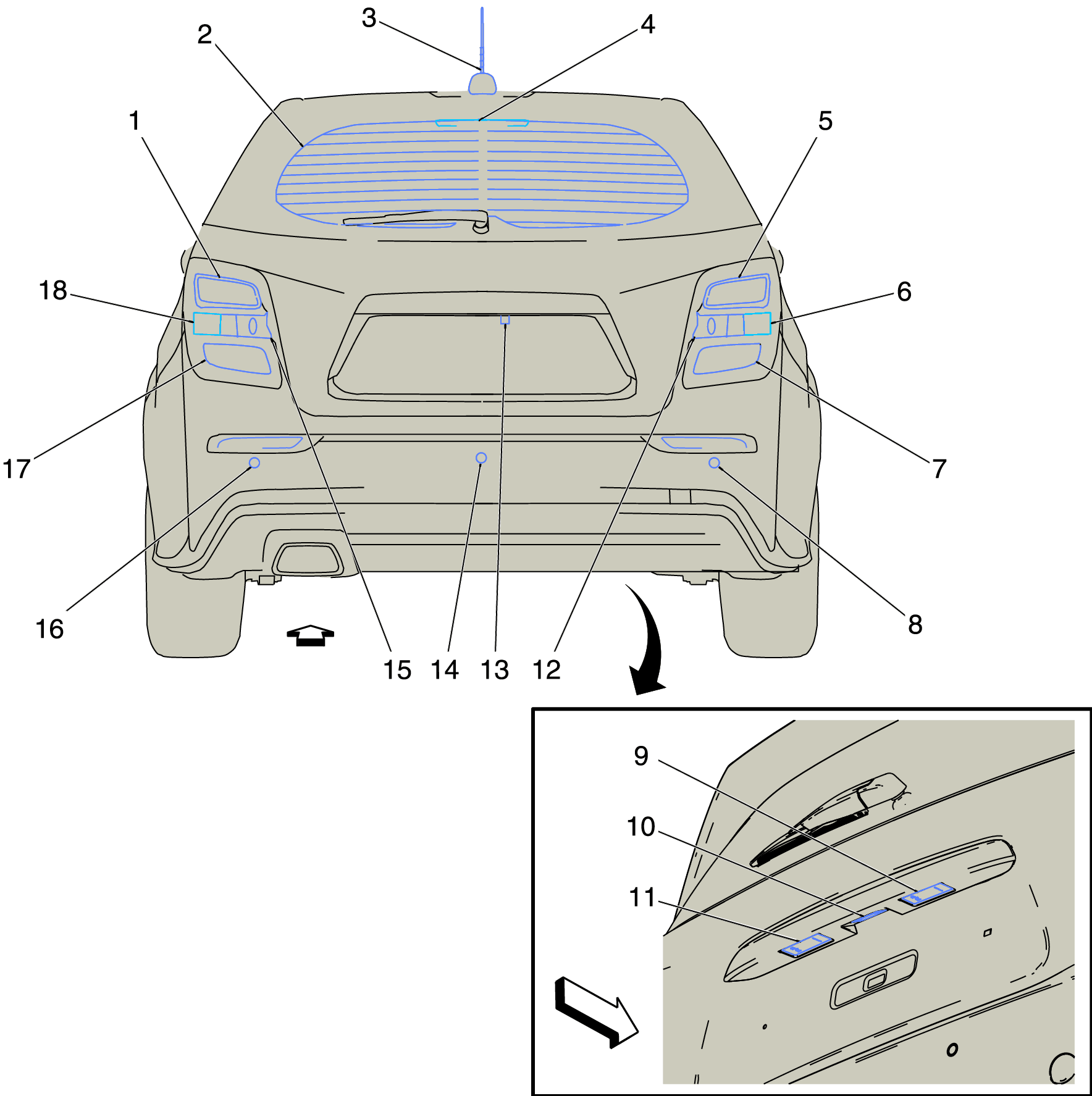

Rear of Vehicle Components (Hatchback)
Rear of Vehicle Components (Hatchback)
| Items |
|---|
| 1. E5L Stop Lamp - Left |
| 2. E18 Rear Defogger Grid E18 Rear Defogger Grid X1 (Hatchback)E18 Rear Defogger Grid X1 (Notchback)E18 Rear Defogger Grid X2 (Hatchback)E18 Rear Defogger Grid X2 (Notchback) |
| 3. T4M Radio Antenna T4M Radio Antenna |
| 4. E6 Center High Mounted Stop Lamp E6 Center High Mounted Stop Lamp (Hatchback)E6 Center High Mounted Stop Lamp (Notchback) |
| 5. E5R Stop Lamp - Right |
| 6. E4RR Turn Signal Lamp - Right Rear |
| 7. E5F Tail Lamp - Right |
| 8. B306H Parking Assist Sensor - Rear Right Outer B306H Parking Assist Sensor - Rear Right Outer |
| 9. E7R License Plate Lamp - Right E7R License Plate Lamp - Right |
| 10. S46B Liftgate Unlatch Switch (Hatchback) S46B Liftgate Unlatch Switch |
| 11. E7L License Plate Lamp - Left E7L License Plate Lamp - Left |
| 12. E5B Backup Lamp - Right |
| 13. B87 Rearview Camera B87 Rearview Camera (Hatchback)B87 Rearview Camera (Notchback) |
| 14. B306J Parking Assist Sensor - Rear Middle B306J Parking Assist Sensor - Rear Middle |
| 15. E5A Backup Lamp - Left |
| 16. B306E Parking Assist Sensor - Rear Left Outer B306E Parking Assist Sensor - Rear Left Outer |
| 17. E5E Tail Lamp - Left |
| 18. E4LR Turn Signal Lamp - Left Rear |
