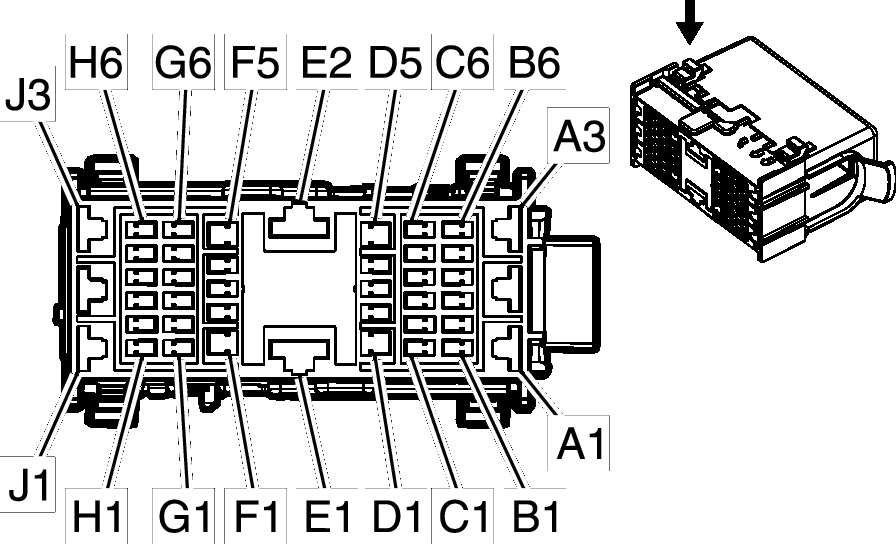

X50A Fuse Block - Underhood X3
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 96947010
- Service Connector: 13587778
- Description: 42-Way F
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575735 |
J-35616-14 (GN) |
J-38125-215A |
12191812 |
Delphi 19 |
C |
A |
| II |
13575735 |
J-35616-14 (GN) |
J-38125-215A |
12191812 |
Delphi 19 |
E |
C |
| III |
13575753 |
J-35616-4A (PU) |
J-38125-215A |
15304711 |
Delphi 8 |
2 |
A |
| IV |
13579978 |
J-35616-44 (YE) |
J-38125-558 |
15304711 |
Delphi 8 |
2 |
A |
| V |
13582223 |
J-35616-42 (RD) |
J-38125-11A |
15304711 |
Delphi 8 |
2 |
A |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A1 |
- |
- |
- |
Not Occupied |
- |
- |
| A2 |
1.5 |
YE |
6 |
Starter Solenoid Crank Ignition Voltage |
V |
- |
| A3 - B1 |
- |
- |
- |
Not Occupied |
- |
- |
| B2 |
0.5 |
YE |
447 |
Starter Relay Coil Control |
II |
LUV |
| B3 |
0.5 |
BK |
1750 |
Ground |
II |
LUV+(C60/MH8) |
| B4 |
0.5 |
WH/GY |
459 |
A/C Compressor Clutch Relay Control |
II |
LUV+C60 |
| B5 |
0.5 |
BN/GN |
59 |
A/C Compressor Clutch Control |
II |
- |
| B6 |
1 |
VT/BU |
5290 |
Powertrain Main Relay Fused Supply 1 |
I |
- |
| C1 |
0.75 |
RD/WH |
140 |
Battery Positive Voltage |
I |
LUV |
| C2 |
0.75 |
RD/VT |
340 |
Battery Positive Voltage |
I |
MH8 |
| C3 |
- |
- |
- |
Not Occupied |
- |
- |
| C4 |
0.5 |
BN/YE |
473 |
High Speed Cooling Fan Relay Control |
II |
LUV |
| C5 |
0.5 |
VT/BU |
5294 |
Powertrain Main Relay Fused Supply 5 |
II |
- |
| C6 |
- |
- |
- |
Not Occupied |
- |
- |
| D1 |
0.75 |
VT/BU |
5290 |
Powertrain Main Relay Fused Supply 1 |
III |
- |
| D2 |
0.5 |
YE |
5991 |
Powertrain Relay Coil Control |
II |
LUV |
| D3 |
0.5 |
VT/BU |
5291 |
Powertrain Main Relay Fused Supply 2 |
II |
- |
| D4 |
0.5 |
VT/BU |
5290 |
Powertrain Main Relay Fused Supply 1 |
II |
- |
| D5 |
0.75 |
VT/BU |
5290 |
Powertrain Main Relay Fused Supply 1 |
III |
- |
| E1 |
1.5 |
RD/WH |
2040 |
Battery Positive Voltage |
IV |
- |
| E2 - F2 |
- |
- |
- |
Not Occupied |
- |
- |
| F3 |
0.5 |
BN/YE |
473 |
High Speed Cooling Fan Relay Control |
II |
LUV |
| F4 |
- |
- |
- |
Not Occupied |
- |
- |
| F5 |
0.5 |
VT/BU |
5291 |
Powertrain Main Relay Fused Supply 2 |
III |
- |
| G1 |
- |
- |
- |
Not Occupied |
- |
- |
| G2 |
0.5 |
BN/WH |
419 |
Check Engine Indicator Control |
II |
LUV |
| G3 |
0.5 |
GN/GY |
465 |
Fuel Pump Primary Relay Control |
II |
- |
| G4 |
0.5 |
WH/BU |
6311 |
Cruise/ETC/TCC Brake Signal |
II |
- |
| G5 |
0.5 |
VT/GY |
139 |
Run/Crank Ignition 1 Voltage |
II |
LUV |
| G6 - H3 |
- |
- |
- |
Not Occupied |
- |
- |
| H4 |
0.5 |
WH |
1310 |
EVAP Canister Vent Solenoid Control |
II |
LUV |
| H5 |
0.5 |
VT/YE |
5985 |
Accessory Wakeup Serial Data |
II |
- |
| H6 |
0.5 |
VT/GY |
139 |
Run/Crank Ignition 1 Voltage |
II |
- |
| J1 - J3 |
- |
- |
- |
Not Occupied |
- |
- |
