Front Bumper Fascia Opening Lower Cover Replacement (RS)

Courtesy of GENERAL MOTORS COMPANY

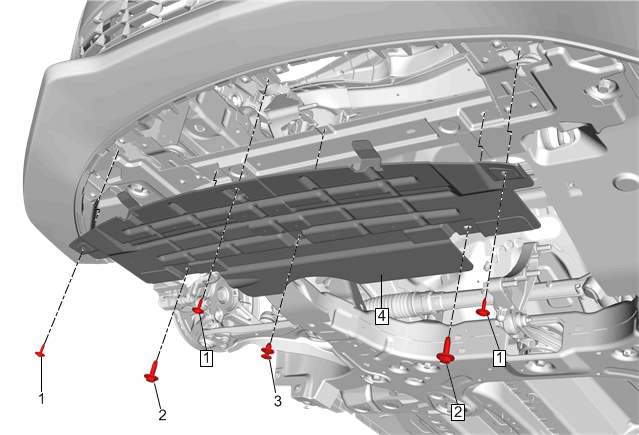

Callout	Component Name
1	Front Bumper Fascia Opening Lower Cover Screw (Qty: 3) CAUTION: Fastener Caution Tighten  2.5 N.m (22 lb in)
2	Front Bumper Fascia Opening Lower Cover Bolt (Qty: 2) Tighten  22 N.m (16 lb ft)
3	Front Bumper Fascia Opening Lower Cover Push-In Retainer
4	Front Bumper Fascia Opening Lower Cover
