Instrument Cluster Replacement

Courtesy of GENERAL MOTORS COMPANY

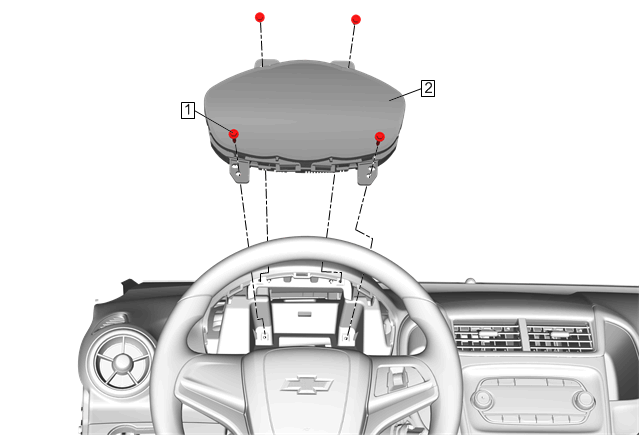

Callout	Component Name
Preliminary Procedures Remove the instrument panel steering column upper trim cover. Steering Column Upper Trim Cover Replacement .
1	Instrument Cluster Fastener (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2.5N.m (22 lb in)
2	Instrument Cluster Procedure Disconnect the electrical connector. Refer to Control Module References for programming and set up information.

Callout

Component Name

Preliminary Procedures
Remove the instrument panel steering column upper trim cover. Steering Column Upper Trim Cover Replacement .

Instrument Cluster Fastener (Qty: 4)

CAUTION:

Tighten
2.5N.m (22 lb in)

Instrument Cluster

Procedure
