Stabilizer Shaft Link Replacement

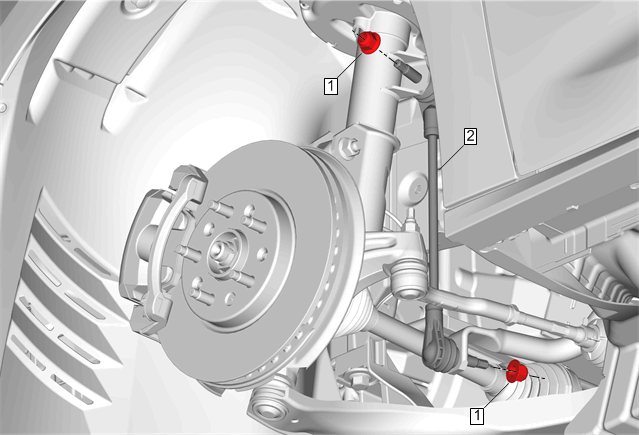

GM3988652Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation
1 Front Stabilizer Shaft Link Nut [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
65 N.m (48 lb ft)
2 Front Stabilizer Shaft Link
