Steering Gear Heat Shield Replacement

Courtesy of GENERAL MOTORS COMPANY

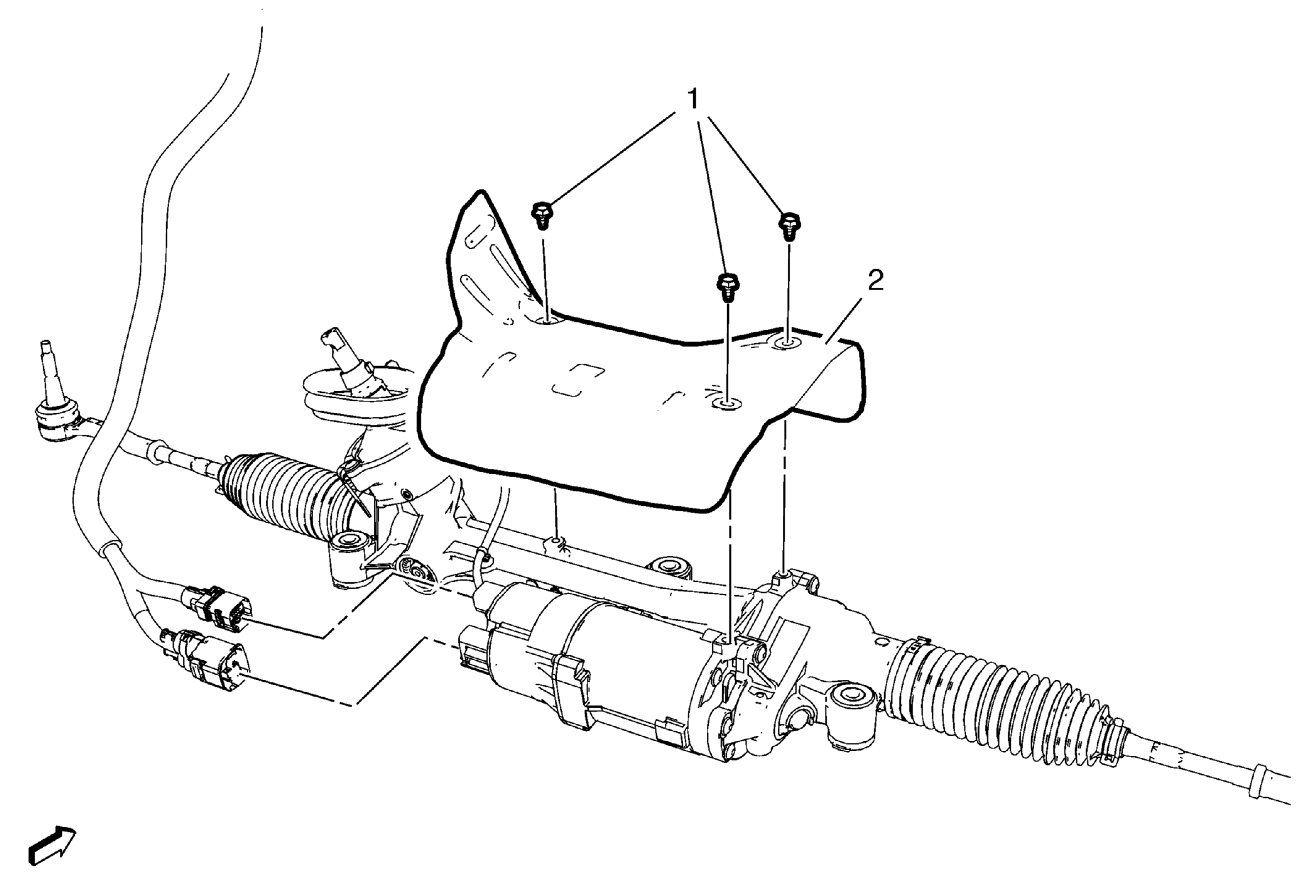

Callout	Component Name
Preliminary Procedure  Exhaust Front Pipe Replacement (1.4L LE2)Exhaust Front Pipe Replacement (1.6L Diesel LH7)
1	Steering Gear Heat Shield Bolt [3x] CAUTION: Fastener Caution Tighten  9 N.m (80 lb in)
2	Steering Gear Heat Shield
