Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement (1.6L Diesel LH7)

Courtesy of GENERAL MOTORS COMPANY

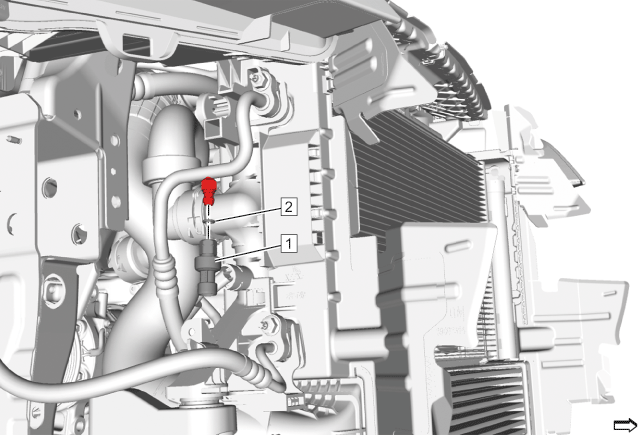

Callout	Component Name
Preliminary Procedure  Front Bumper Fascia Replacement
1	Air Conditioning Refrigerant Pressure Sensor Procedure  Disconnect the electrical connector. CAUTION: Refer to:Component Fastener Tightening Caution . Tighten  6 N.m (53 lb in)
2	O-Ring Procedure  Using the GE 50078  detector and leak test the A/C compressor fittings. Special Tools  GE 50078  Electronic Leak Detector Equivalent regional tools: Special Tools
