Transmission Control Replacement

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

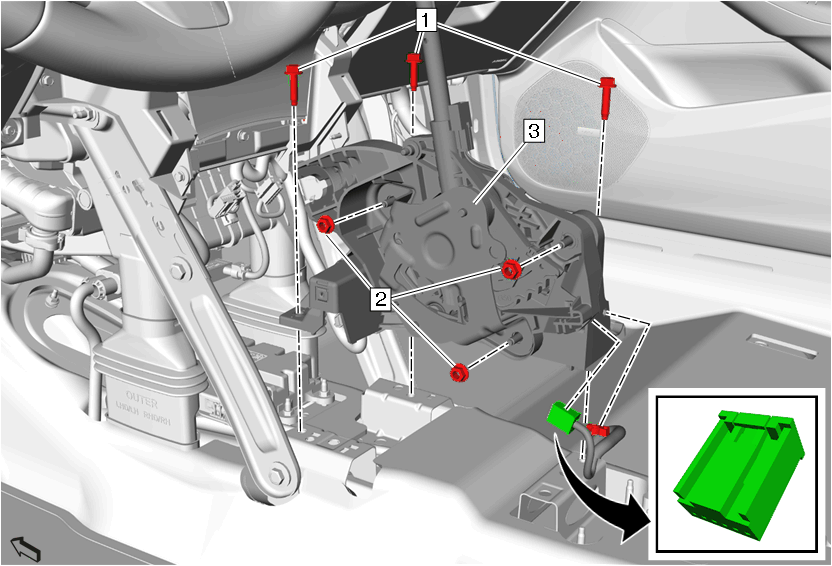

Callout	Component Name
Preliminary Procedures Front Floor Console Extension Panel - Remove [2x] - Front Floor Console Extension Panel Replacement Front Floor Console Replacement (D06)Front Floor Console Replacement (DBU) Range Selector Lever Cable @ Transmission Control - Disconnect - Range Selector Lever Cable Replacement
1	Transmission Control Fastener [3x] CAUTION: Fastener Caution Tighten 9 N.m (80 lb in)
2	Transmission Control Nut [3x] Tighten 9 N.m (80 lb in)
3	Transmission Control Procedure Disconnect the electrical connector. Wiring Harness Retainer - Unclip After installation is completed carry out a range selector lever cable adjustment. Range Selector Lever Cable Adjustment Transfer components as necessary.
