Installation Procedure
WARNING: This page is about a different variant/trim than selected.

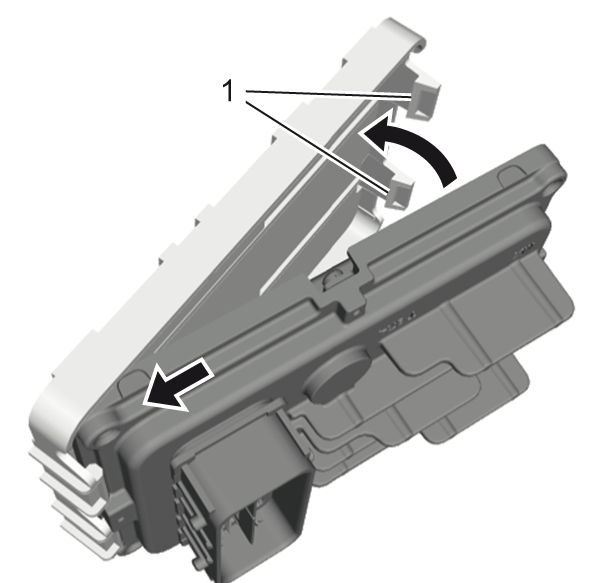

Install the transmission control module to the transmission control module bracket, check the proper seat of the retainers (1).

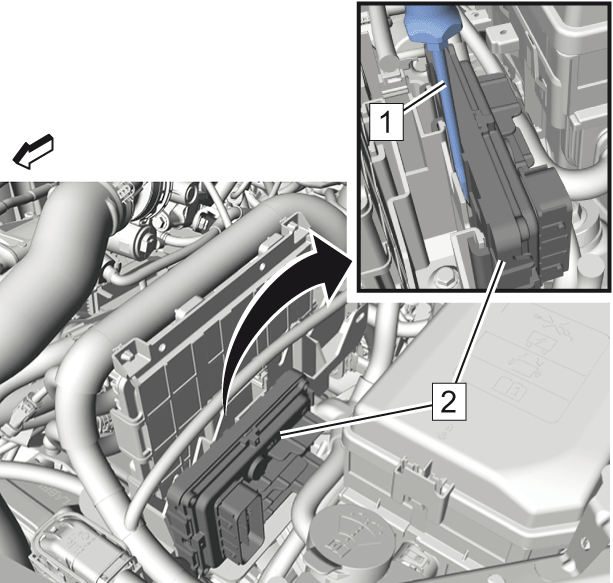

Reposition the transmission control module bracket along with the transmission control module (2).

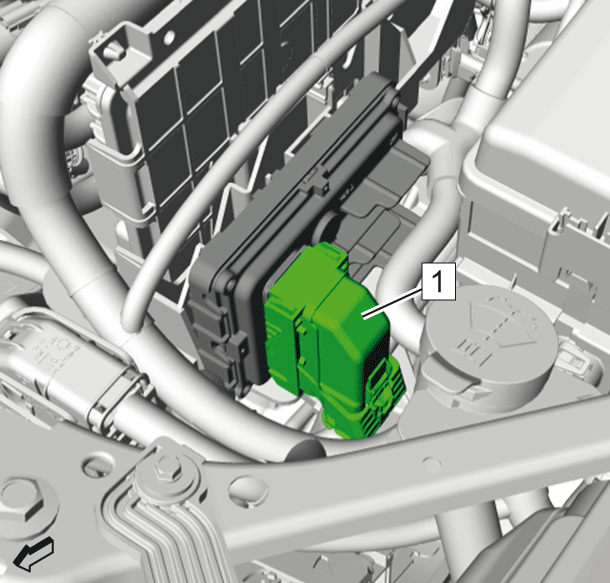

Connect the transmission control module electrical connector (1).
- Battery Negative Cable - Connect - Battery Negative Cable Disconnection and Connection
- Program the transmission control module. Control Module References
- Reprogram the performance characteristics data for the solenoid valves. Solenoid Valve Characterization Reprogramming
