Removal Procedure

WARNING: This page is about a different variant/trim than selected.

Set the parking brake.
Shift the transmission control into Reverse position.
Courtesy of GENERAL MOTORS COMPANY

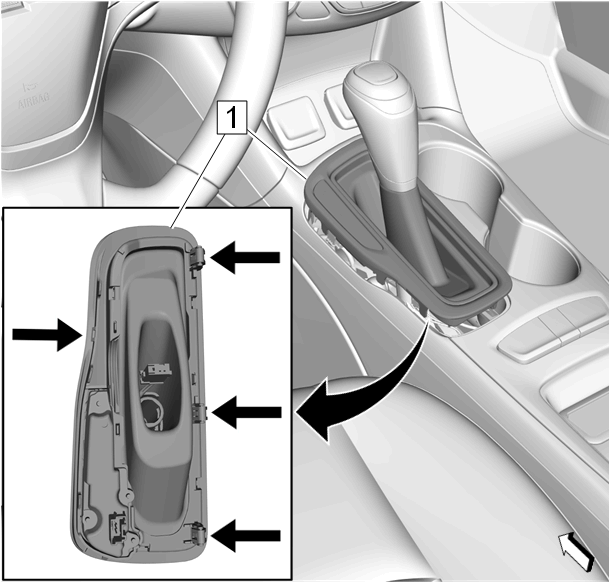

Unclip (arrows) the transmission control lever boot bezel (1), using a flat bladed tool.
Pull the lever boot bezel (1) up to gain access to the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

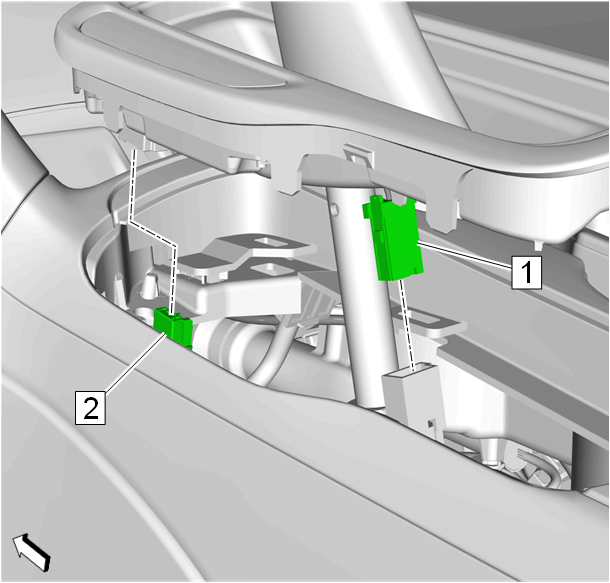

Electrical Connector (1, 2) - Disconnect [2x]
Courtesy of GENERAL MOTORS COMPANY

Detach the transmission control lever boot from the transmission control lever knob.

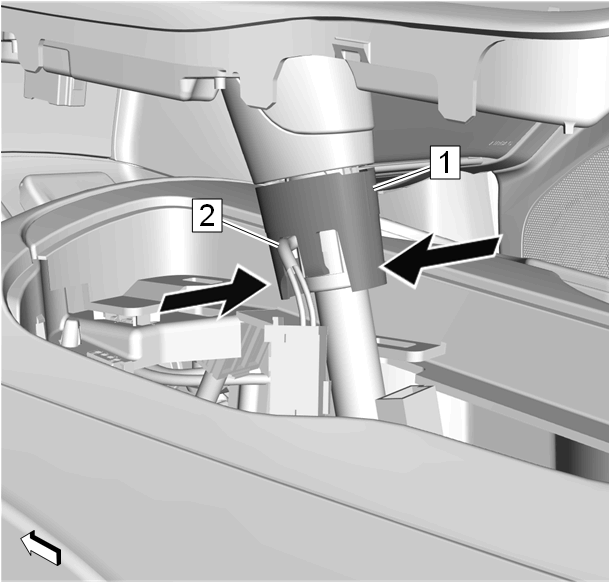

1. Pull the transmission control lever boot over the transmission control lever knob to gain access to the upper boot ring (1).
2. Press (arrows) the upper boot ring (1) to disengage the snaps.
3. Push the upper boot ring (1) along with the lever boot down.
4. Guide the wiring harness (2) through the upper boot ring (1).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Press the button while sliding the lever knob extension downwards.

Detach the transmission control lever knob extension (1) from the lever knob with a flat bladed tool, then slide the lever knob extension downwards.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
The graphic is shown without the transmission control lever knob extension, for the sake of clarity.

Wiring Harness (1) - Position aside
1. Detach the wiring harness from the 2 holders (2).
2. Guide the wiring harness upwards out the bottom hole of the transmission control lever knob extension.
Courtesy of GENERAL MOTORS COMPANY

Remove the transmission control lever knob retainer (1).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
This is a press fit and will take some force to pull the transmission control lever knob off. Before applying an upward force, ensure the wiring harness is free.

Transmission Control Lever Knob (1) @ Transmission Control Lever - Remove
