Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

Install the transmission control lever knob retainer (1).
Courtesy of GENERAL MOTORS COMPANY

Wiring Harness (1) - Reposition
Courtesy of GENERAL MOTORS COMPANY

Guide the wiring harness through the transmission control lever knob retainer (1).
Attach the transmission control lever knob extension (1) to the lever knob.
Courtesy of GENERAL MOTORS COMPANY

Attach the transmission control lever boot (1) to the transmission control lever knob.
1. Guide the wiring harness through the transmission control lever boot (1).
2. Clip the upper boot ring (2) into the bottom of the transmission control lever knob.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
When installing the transmission control lever knob, a defined snap noise should be audible and a snap effect should be felt. After installation, check the retention of the transmission control lever knob by pulling it upwards with two hands and significant force in an attempt to remove it.

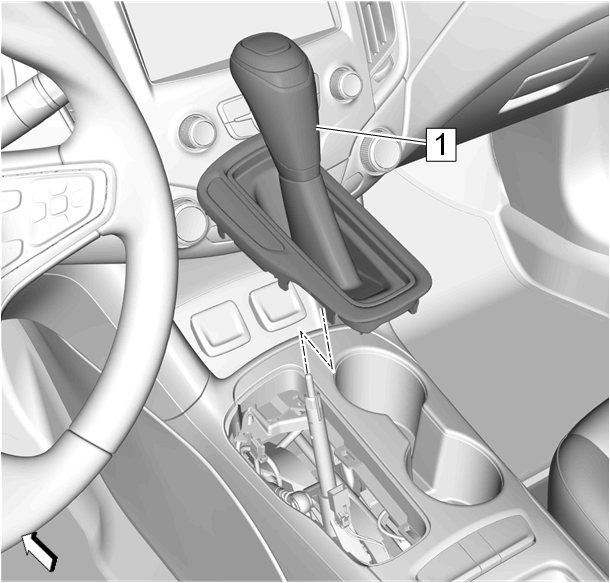

Transmission Control Lever Knob (1) @ Transmission Control Lever - Install
Shift the transmission control lever into "P" position
Courtesy of GENERAL MOTORS COMPANY

Electrical Connector (1, 2) - Connect [2x]
Courtesy of GENERAL MOTORS COMPANY

Clip in (arrows) the transmission control lever boot bezel (1).
Release the parking brake.
