Torque Converter Fluid Seal Replacement

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

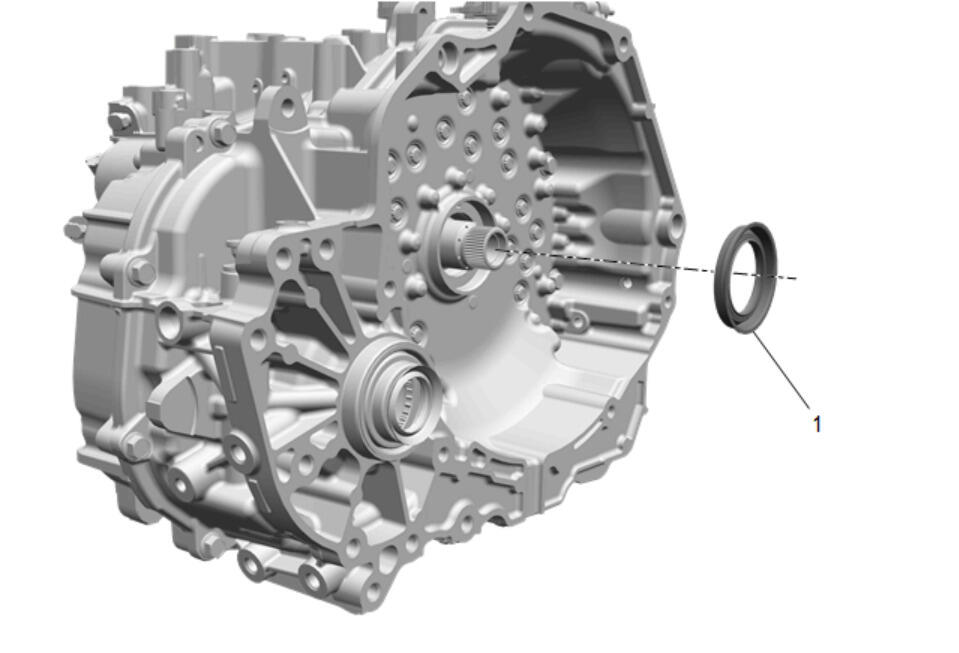

Callout	Component Name
Preliminary Procedure Torque Converter Replacement
1	Torque Converter Fluid Seal NOTE: Install a NEW seal. Do NOT reuse the old seal. Special Tools DT-6125-1B Slide Hammer J-29162 Seal Installer EN-23129 Universal Seal Remover Equivalent regional tools: Special Tools .

Callout

Component Name

Torque Converter Fluid Seal

NOTE:

Install a NEW seal. Do NOT reuse the old seal.

Special Tools

Equivalent regional tools: Special Tools .
