Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the manual shift detent lever shaft assembly. Manual Shift Detent Lever Shaft Replacement

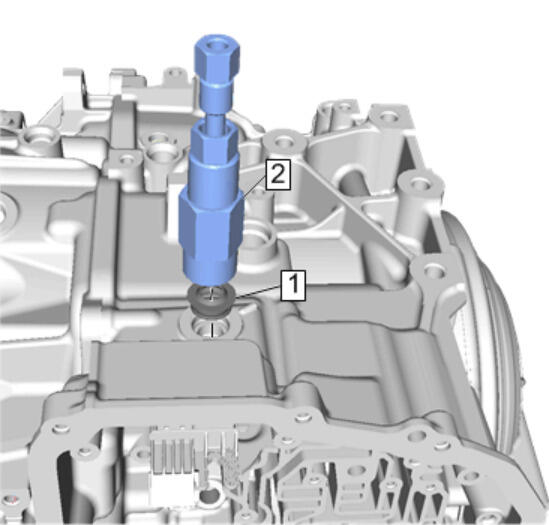

  2. GM4493722Courtesy of GENERAL MOTORS COMPANY

    Remove and DISCARD the manual shaft seal (1) using DT-45201  remover (2).
