Automatic Transmission Input Speed Sensor Replacement

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

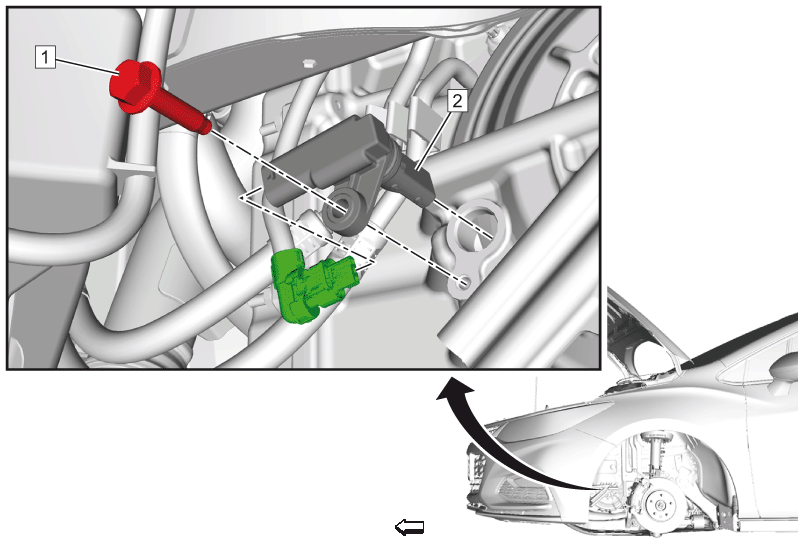

Callout	Component Name
Preliminary Procedures Lifting and Jacking the Vehicle Front Wheelhouse Liner- Left Side - Remove - Front Wheelhouse Liner Replacement
1	Input Speed Sensor Bolt Procedure Disconnect the electrical connector. CAUTION: Fastener Caution Tighten 9 N.m (80 lb in)
2	Input Speed Sensor

Callout

Component Name

Preliminary Procedures

Input Speed Sensor Bolt
Procedure
Disconnect the electrical connector.

CAUTION:

Tighten
9 N.m (80 lb in)

Input Speed Sensor
