Automatic Transmission Fluid Pressure Test Hole Plug Replacement

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

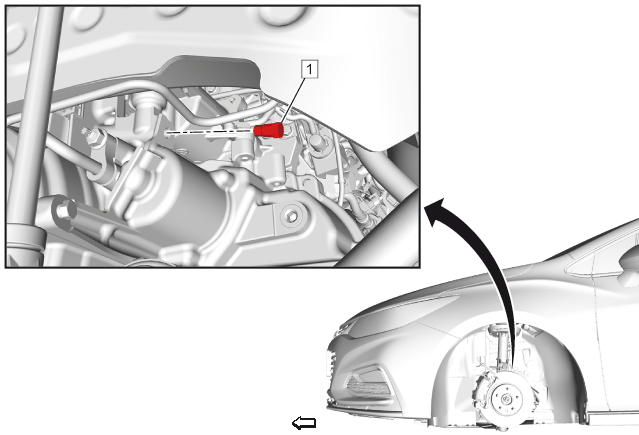

Callout	Component Name
1	Fluid Pressure Test Hole Plug CAUTION: Component Fastener Tightening Caution Tighten 12 N.m (106 lb in)
