Automatic Transmission Fluid Level Hole Plug Replacement

WARNING: This page is about a different variant/trim than selected.

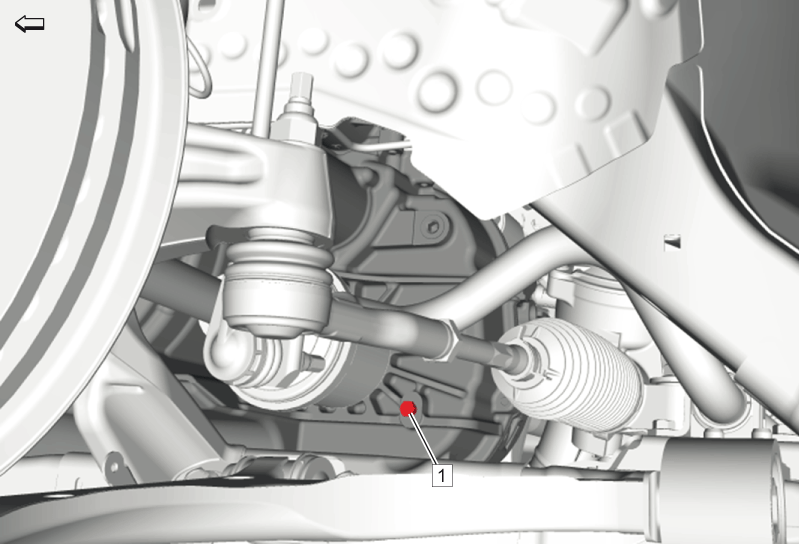

Fig 1: Identifying Automatic Transmission Fluid Level Hole Plug
GM4538042Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Tire and Wheel Removal and Installation
1 Automatic Transmission Fluid Level Hole Plug
CAUTION:

Component Fastener Tightening Caution


Tighten
12 N.m (106 lb in)
