Section 3 (Engine Controls And Fuel - 1.6L (LH7) Diesel - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Engine Controls Wiring Schematics
>>

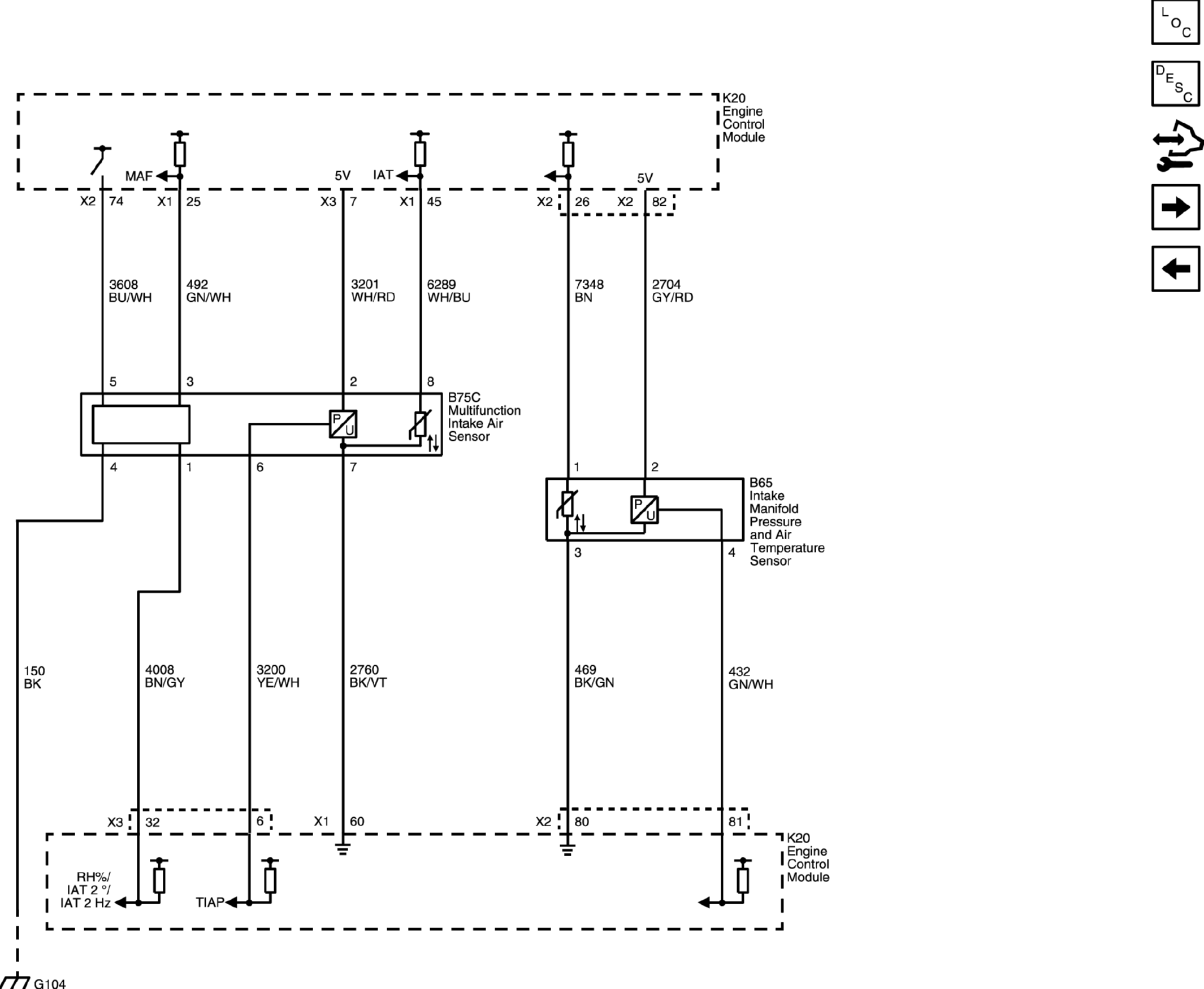

Fuel Controls - Intake Manifold Pressure, and Mass Air Flow Sensor
Fuel Controls - Intake Manifold Pressure, and Mass Air Flow Sensor
WARNING:
This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
