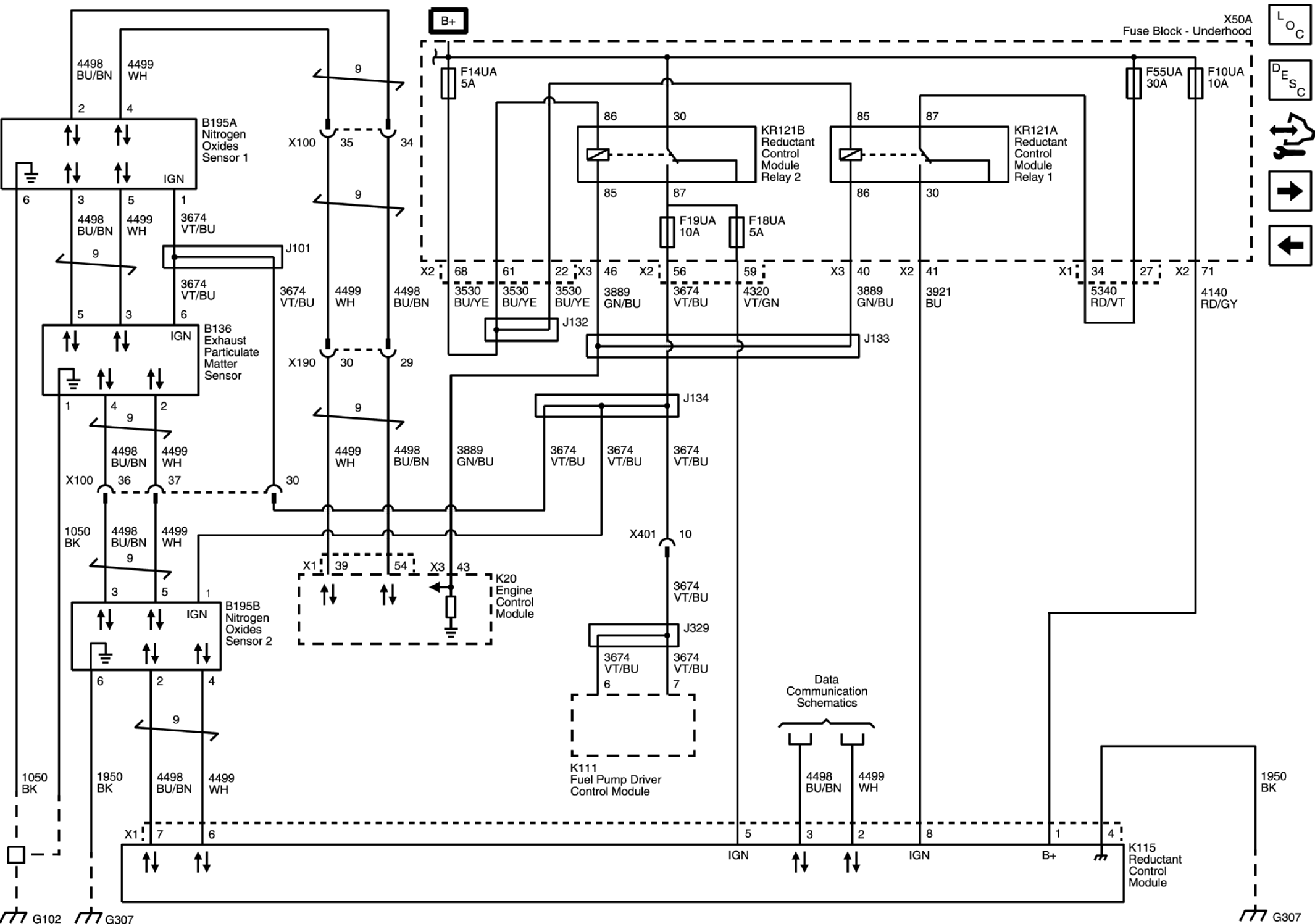

Emission Controls - Nitrogen Oxides, Exhaust Particulate Matter Sensor, and Reductant Sensor Module (Notchback)

WARNING: This page is about a different variant/trim than selected.
GM4892353Courtesy of GENERAL MOTORS COMPANY
