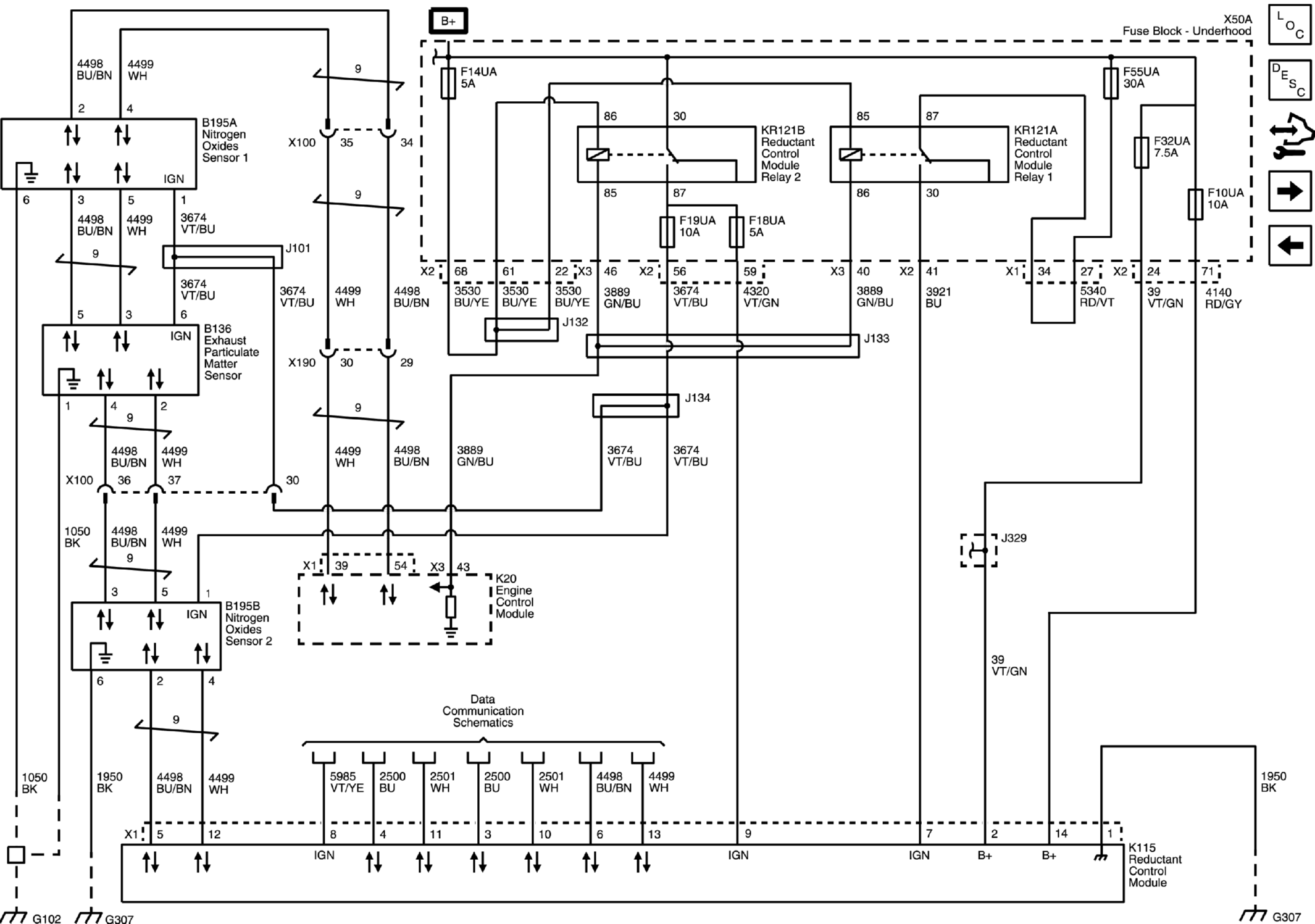

Emission Controls - Nitrogen Oxides, Exhaust Particulate Matter Sensor, and Reductant Sensor Module (Hatchback)

WARNING: This page is about a different variant/trim than selected.
GM4892355Courtesy of GENERAL MOTORS COMPANY
