Transmission Fluid Pump, Front Differential Carrier Baffle, and Front Differential Ring Gear Removal
WARNING: This page is about a different variant/trim than selected.

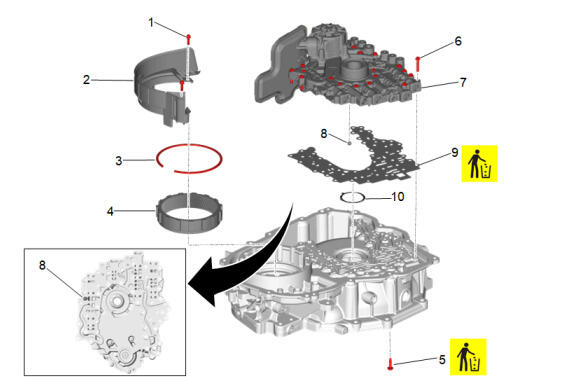

Fig 1: Exploded View Of Transmission Fluid Pump, Front Differential Carrier Baffle And Front Differential Ring Gear Components
| Callout | Component Name |
|---|---|
| 1 | Front Differential Carrier Baffle Bolt [2x] |
| 2 | Front Differential Carrier Baffle |
| 3 | Front Differential Rear Gear Retainer
NOTE:
Note the direction of the taper to ensure proper installation. |
| 4 | Front Differential Ring Gear |
| 5 | Automatic Transmission Fluid Pump Cover Bolt [19x]
NOTE:
Remove and DISCARD the bolts. |
| 6 | Automatic Transmission Fluid Pump Cover Bolt [22x] |
| 7 | Automatic Transmission Fluid Pump |
| 8 | Automatic Transmission Fluid Pump Ball Check Valve |
| 9 | Auxiliary Control Valve Body Spacer Plate
NOTE:
Remove and DISCARD the plate. |
| 10 | Driven Sprocket Thrust Washer |
| 11 | Drive Link Lubricant Fluid Seal
NOTE:
Remove and DISCARD the seal. |
