Automatic Transmission Fluid Pump Disassemble

WARNING: This page is about a different variant/trim than selected.

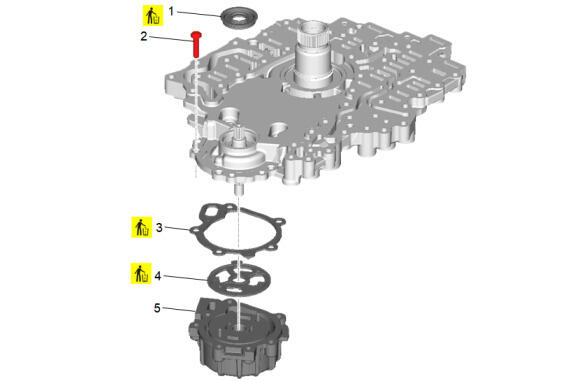

Fig 1: Exploded View Of Automatic Transmission Fluid Pump Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Automatic Transmission Fluid Pump Shaft Seal NOTE: Remove and DISCARD the seal.
2	Automatic Transmission Fluid Pump Cover Bolt [5x]
3	Automatic Transmission Fluid Pump Gasket NOTE: Remove and DISCARD the gasket.
4	Automatic Transmission Fluid Pump Seal NOTE: Remove and DISCARD the seal.
5	Automatic Transmission Fluid Pump
