Automatic Transmission Fluid Pump Body Disassemble (2 of 2)
WARNING: This page is about a different variant/trim than selected.
Automatic Transmission Fluid Pump Body Disassemble (2 of 2)

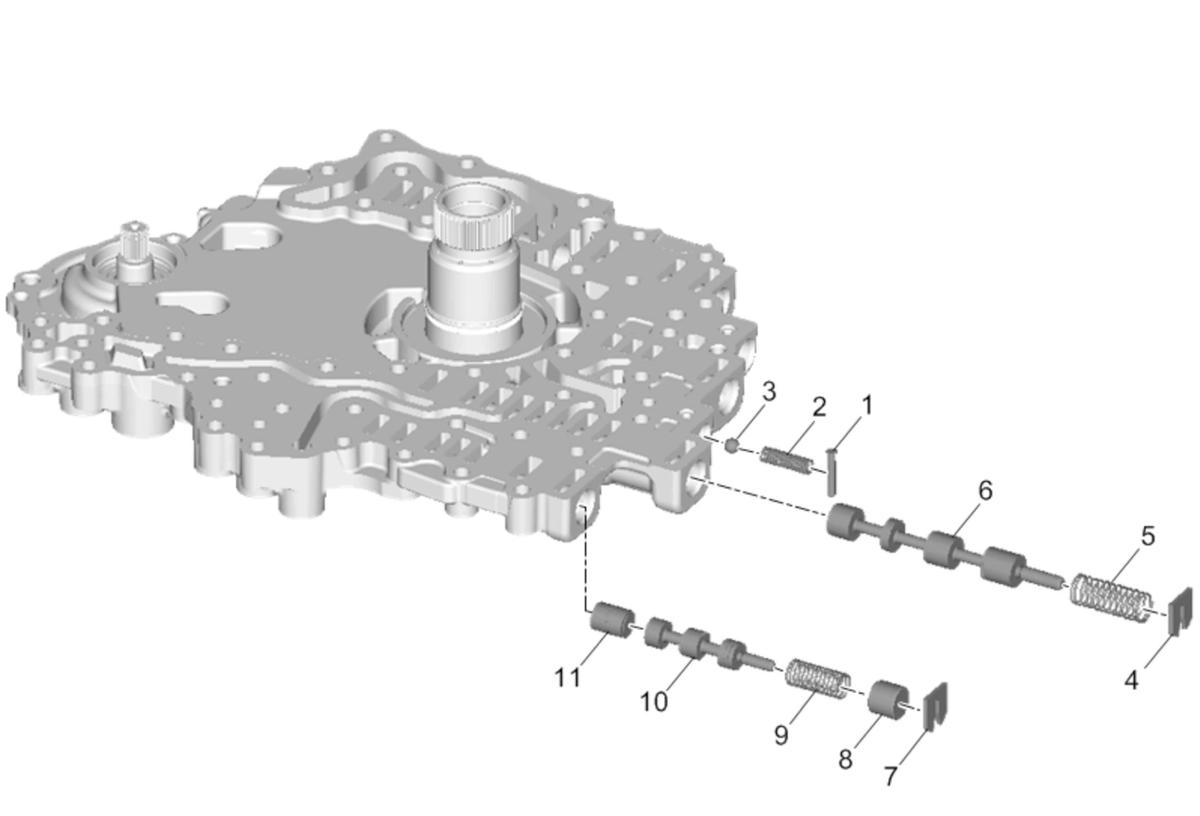

| Callout | Component Name |
|---|---|
|
WARNING:
Valve springs can be tightly compressed. Use care when removing retainers and plugs. Personal injury could result.
CAUTION:
After cleaning the transmission components, allow to air dry. Do not use cloth or paper towels in order to dry any transmission components. Lint from the towels can cause component failure.
CAUTION:
Preliminary Procedure Clean and inspect all valve components for wear and/or damage.Do not reuse cleaning solvents. Previously used solvents may deposit sediment which may damage the component. |
|
| 1 | Torque Converter Clutch Blowoff Ball Valve Retainer |
| 2 | Torque Converter Clutch Blowoff Ball Valve Spring |
| 3 | Torque Converter Clutch Blowoff Ball Valve |
| 4 | Torque Converter Clutch Control Valve Retainer |
| 5 | Torque Converter Clutch Control Valve Spring |
| 6 | Torque Converter Clutch Control Valve |
| 7 | Torque Converter Clutch Regulator Application Valve Bore Plug Retainer |
| 8 | Torque Converter Clutch Regulator Application Valve Bore Plug |
| 9 | Torque Converter Clutch Regulator Apply Valve Spring |
| 10 | Torque Converter Clutch Regulator Apply Valve |
| 11 | Torque Converter Clutch Regulator Application Shuttle Valve |
