Automatic Transmission Fluid Pump Body Disassemble (1 of 2)
WARNING: This page is about a different variant/trim than selected.
Automatic Transmission Fluid Pump Body Disassemble (1 of 2)

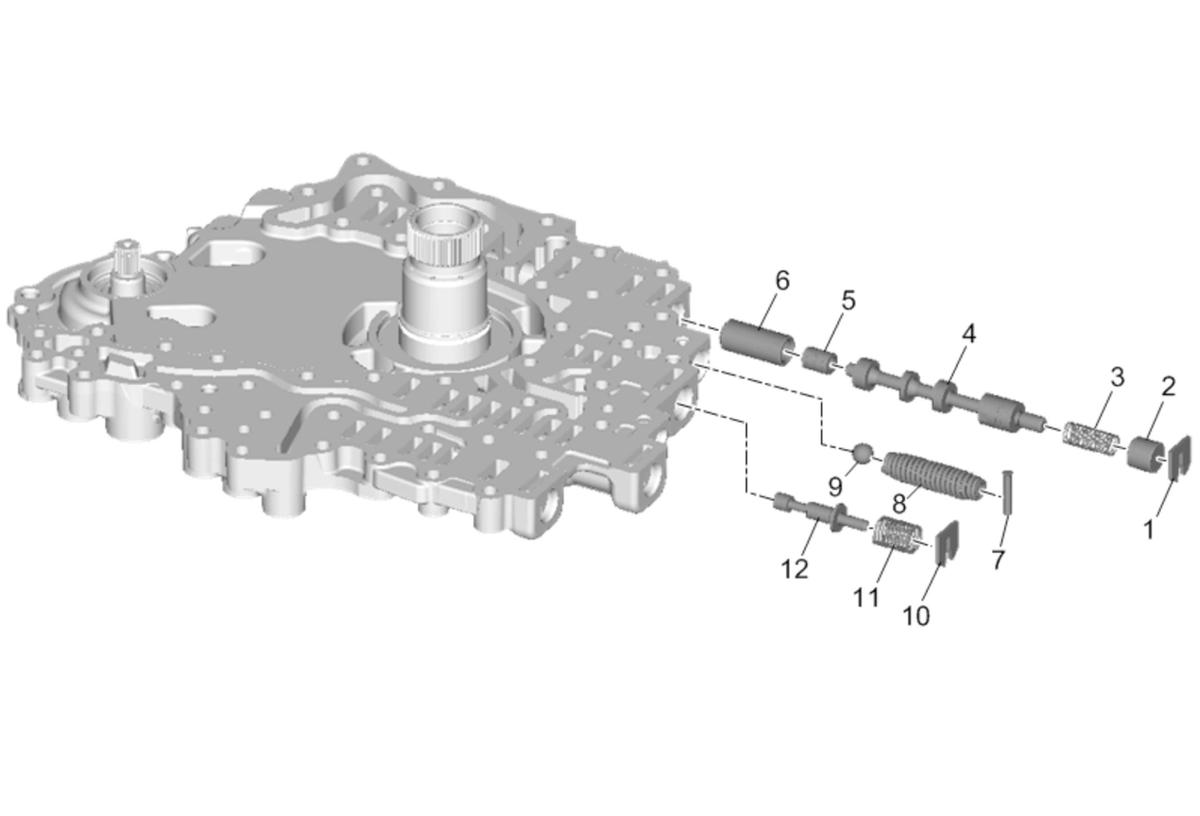

| Callout | Component Name |
|---|---|
|
WARNING:
Valve springs can be tightly compressed. Use care when removing retainers and plugs. Personal injury could result.
CAUTION:
After cleaning the transmission components, allow to air dry. Do not use cloth or paper towels in order to dry any transmission components. Lint from the towels can cause component failure.
CAUTION:
Preliminary Procedure Clean and inspect all valve components for wear and/or damage.Do not reuse cleaning solvents. Previously used solvents may deposit sediment which may damage the component. |
|
| 1 | Pressure Regulator Valve Bore Plug Retainer |
| 2 | Pressure Regulator Valve Plug |
| 3 | Pressure Regulator Valve Spring |
| 4 | Pressure Regulator Valve |
| 5 | Pressure Regulator Shuttle Valve |
| 6 | Pressure Regulator Valve Bore Bushing |
| 7 | Line Blowoff Ball Valve Spring Retainer |
| 8 | Automatic Transmission Fluid Pump Blowoff Ball Valve Spring |
| 9 | Automatic Transmission Fluid Pump Blowoff Ball Valve |
| 10 | Lube Regulator Valve Bore Plug Retainer |
| 11 | Lube Boost Valve Spring |
| 12 | Lube Regulator Valve |
