Drive Chain, Drive Sprocket, and Driven Sprocket Assemble

WARNING: This page is about a different variant/trim than selected.

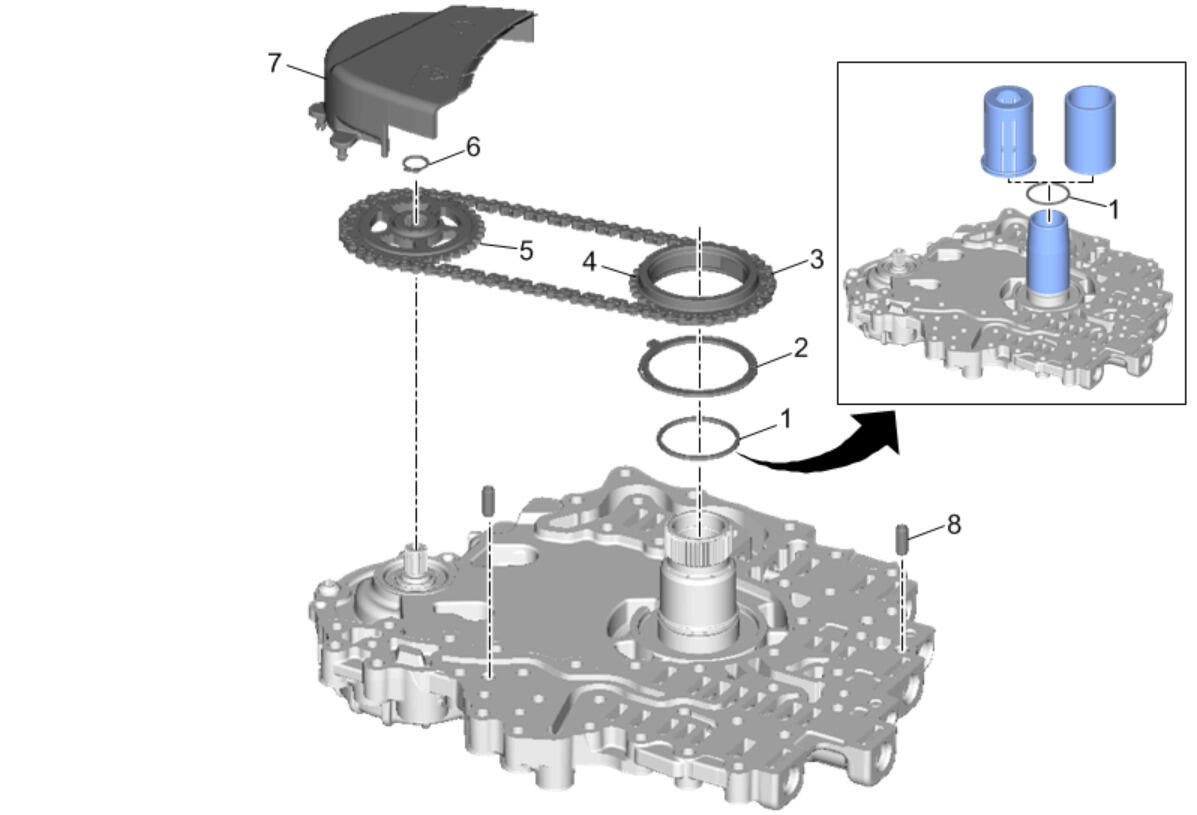

Fig 1: Exploded View Of Drive Chain, Drive Sprocket And Driven Sprocket Components

GM4382339

Courtesy of GENERAL MOTORS COMPANY

Drive Chain, Drive Sprocket, and Driven Sprocket Assemble

Callout	Component Name
1	Torque Converter Fluid Seal Ring Procedure Place DT-51191-4 which is part of DT-51191 Pump Seal Installer Set over the Stator Support. Place a NEW Torque Converter Fluid Seal Ring onto DT-51191-4 . Use DT-51191-2 to push the Torque Converter Fluid Seal Ring down over DT-51191-4 into the Seal groove. Remove DT-51191-4 Install DT-51191-1 with the chamfer end down over the Torque Converter Fluid Seal Ring and leave on the Seal Ring for at least 60 seconds. Special Tools DT-51191 Pump Seal Installer Set Equivalent regional tools: Special Tools
2	Driven Sprocket Thrust Washer
3	Drive Link Procedure Install the sprockets and chain together as an assembly.
4	Drive Sprocket
5	Driven Sprocket
6	Drive Sprocket Retaining Ring
7	Automatic Transmission Fluid Baffle
8	Automatic Transmission Fluid Pump Locating Pin [2x]
