Automatic Transmission Fluid Pump Body Assemble (1 of 2)
WARNING: This page is about a different variant/trim than selected.

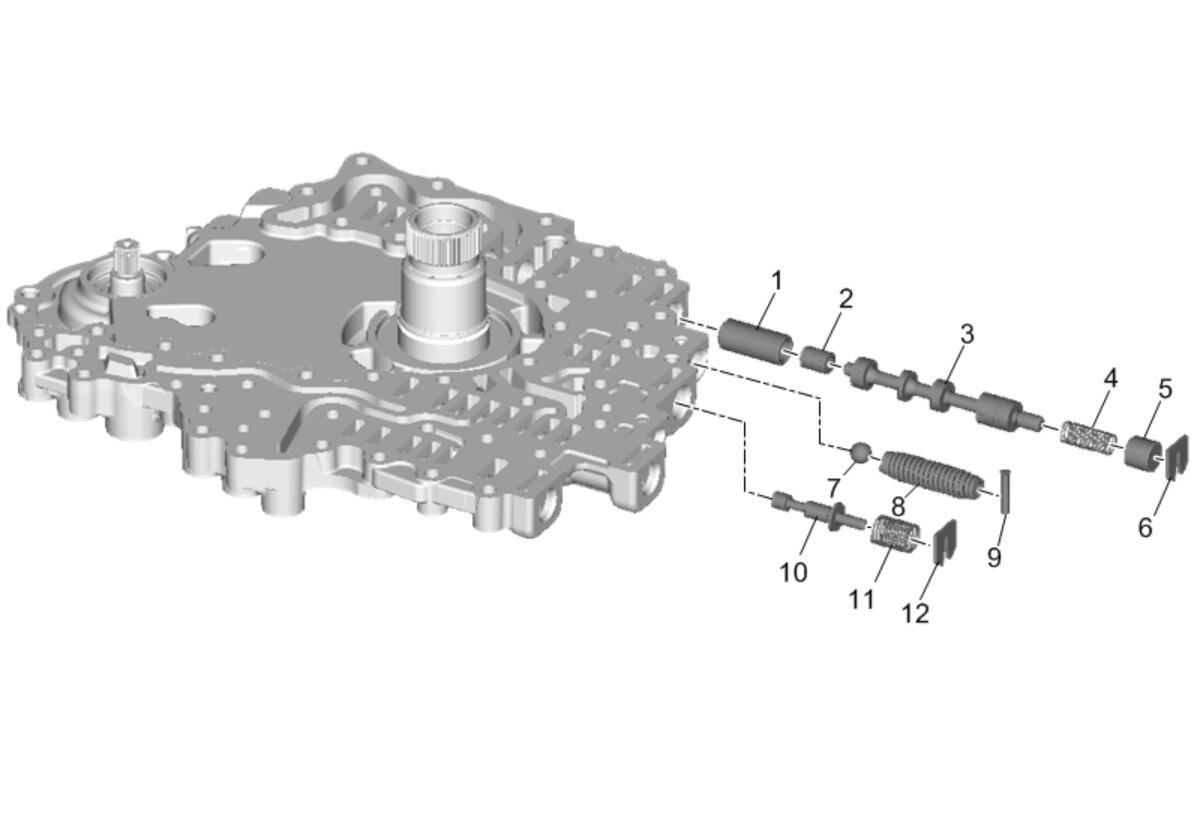

Automatic Transmission Fluid Pump Body Assemble (1 of 2)
| Callout | Component Name |
|---|---|
| 1 | Pressure Regulator Valve Bore Bushing |
| 2 | Pressure Regulator Shuttle Valve |
| 3 | Pressure Regulator Valve |
| 4 | Pressure Regulator Valve Spring |
| 5 | Pressure Regulator Valve Plug |
| 6 | Pressure Regulator Valve Bore Plug Retainer |
| 7 | Automatic Transmission Fluid Pump Blowoff Ball Valve |
| 8 | Automatic Transmission Fluid Pump Blowoff Ball Valve Spring |
| 9 | Line Blowoff Ball Valve Spring Retainer |
| 10 | Lube Regulator Valve |
| 11 | Lube Boost Valve Spring |
| 12 | Lube Regulator Valve Bore Plug Retainer |
