Torque Converter Fluid Seal Removal

WARNING: This page is about a different variant/trim than selected.

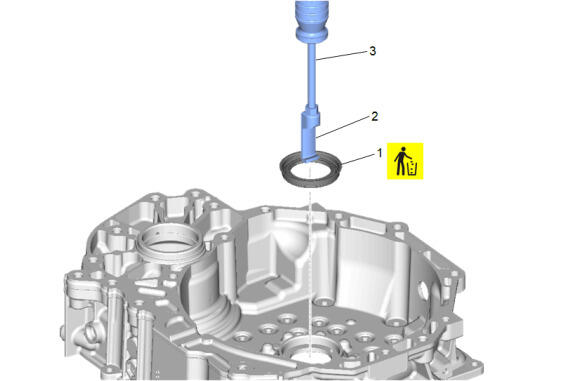

GM4381740Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Torque Converter Fluid Seal
NOTE:

Remove and DISCARD the seal.

Special Tools

  • DT-6125-B  Slide Hammer
  • EN-23129  Universal Seal Remover

Equivalent regional tools: Special Tools .
