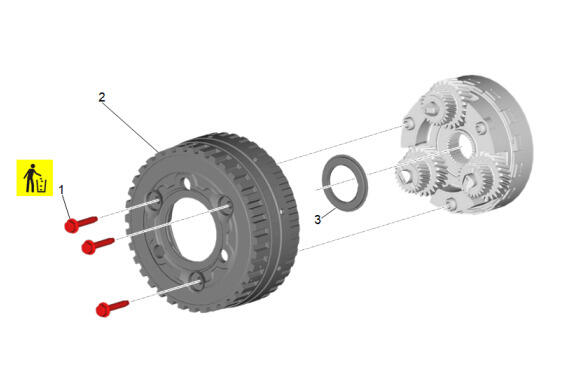

Overdrive and Reaction with Input Internal Gear Carrier Overhaul
WARNING: This page is about a different variant/trim than selected.
 Courtesy of GENERAL MOTORS COMPANY
|
| Callout |
Component Name |
| 1 |
Overdrive and Reaction Carrier Bolt [3x]
Tighten
9 N.m (80 lb in) |
| 2 |
Overdrive Carrier |
| 3 |
Reaction Sun Gear Thrust Bearing
NOTE:
Bearing is only serviceable part.
|
