Manual Shift Shaft Seal Removal

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

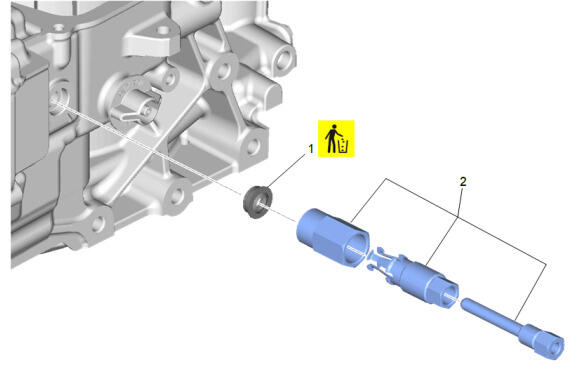

Callout	Component Name
1	Manual Shift Shaft Seal CAUTION: Do not damage the case bore during removal of the manual shift shaft seal. CAUTION: Refer to Seal Reuse Caution . NOTE: Use the DT-45201 seal remover to remove the seal to prevent damage to the case surface. Remove and DISCARD the seal. Special Tools DT-45201 Seal Remover Equivalent regional tools: Special Tools .
