Manual Shift Shaft Seal Installation
WARNING: This page is about a different variant/trim than selected.

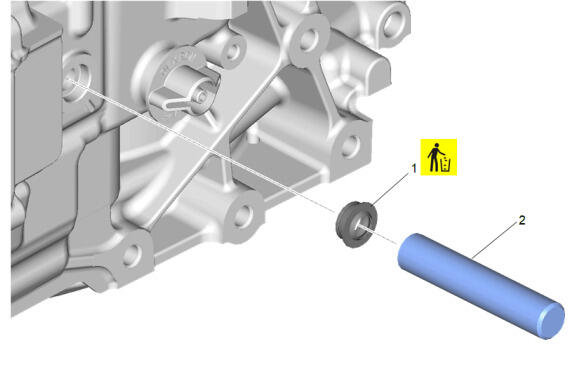

| Callout | Component Name |
|---|---|
| 1 | Manual Shift Shaft Seal
CAUTION:
When installing the seal, ensure the seal lip is firmly seated against the case bore surface. Do not allow the seal lip to be crushed, or a leak may result.
NOTE:
Install a NEW seal. Do NOT reuse the old seal. Special Tool DT-49101 Seal Installer Equivalent regional tools: Special Tools . |
