Park Pawl Actuator Guide Removal
WARNING: This page is about a different variant/trim than selected.
 Courtesy of GENERAL MOTORS COMPANY
|

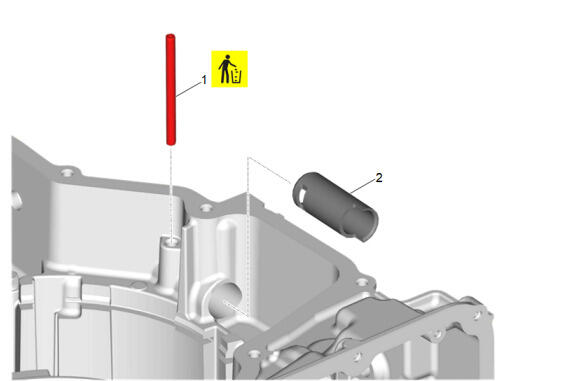

Park Pawl Actuator Guide Removal
| Callout |
Component Name |
| 1 |
Park Pawl Actuator Guide Pin
NOTE:
Use side cutter to remove the pin (1) and discard.
|
| 2 |
Park Pawl Actuator Guide |
