Manual Shaft Detent (w/Shift Position Switch) Lever Assembly Removal
WARNING: This page is about a different variant/trim than selected.
 Courtesy of GENERAL MOTORS COMPANY
|

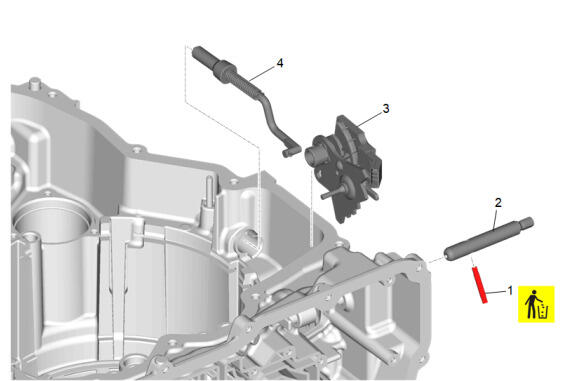

Manual Shaft Detent (w/Shift Position Switch) Lever Assembly Removal
| Callout |
Component Name |
| 1 |
Manual Shaft Detent Lever Hub Pin
NOTE:
Use a punch from the top to remove the pin (1) and discard.
|
| 2 |
Manual Shaft |
| 3 |
Manual Shaft Detent Lever Assembly |
| 4 |
Park Pawl Actuator |
