Park Pawl Actuator Installation

WARNING: This page is about a different variant/trim than selected.

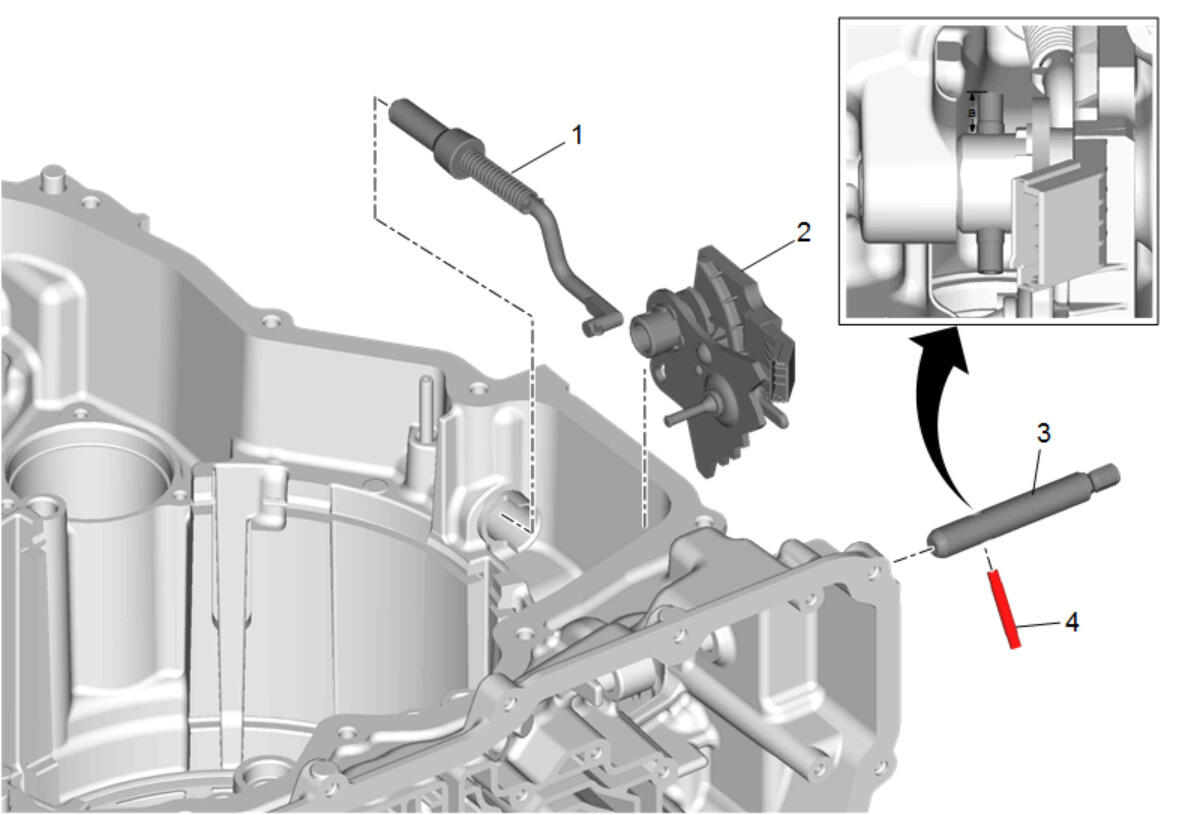

GM4378860Courtesy of GENERAL MOTORS COMPANY
Park Pawl Actuator Installation

Callout Component Name
1 Park Pawl Actuator
2 Manual Shaft Detent Lever Assembly
3 Manual Shaft
NOTE:

Lubricate the shaft with ATF to prevent damage to the manual shift shaft seal during installation.
4 Manual Shaft Detent Lever Hub Pin
CAUTION:

Refer to Fastener Caution .

Procedure

  1. Install a NEW manual shaft detent lever hub pin.
  2. Install the manual shaft detent lever hub pin to correct height.

Specification
7.9 mm (0.38 in) (a)
