Park Pawl Actuator Guide Installation

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

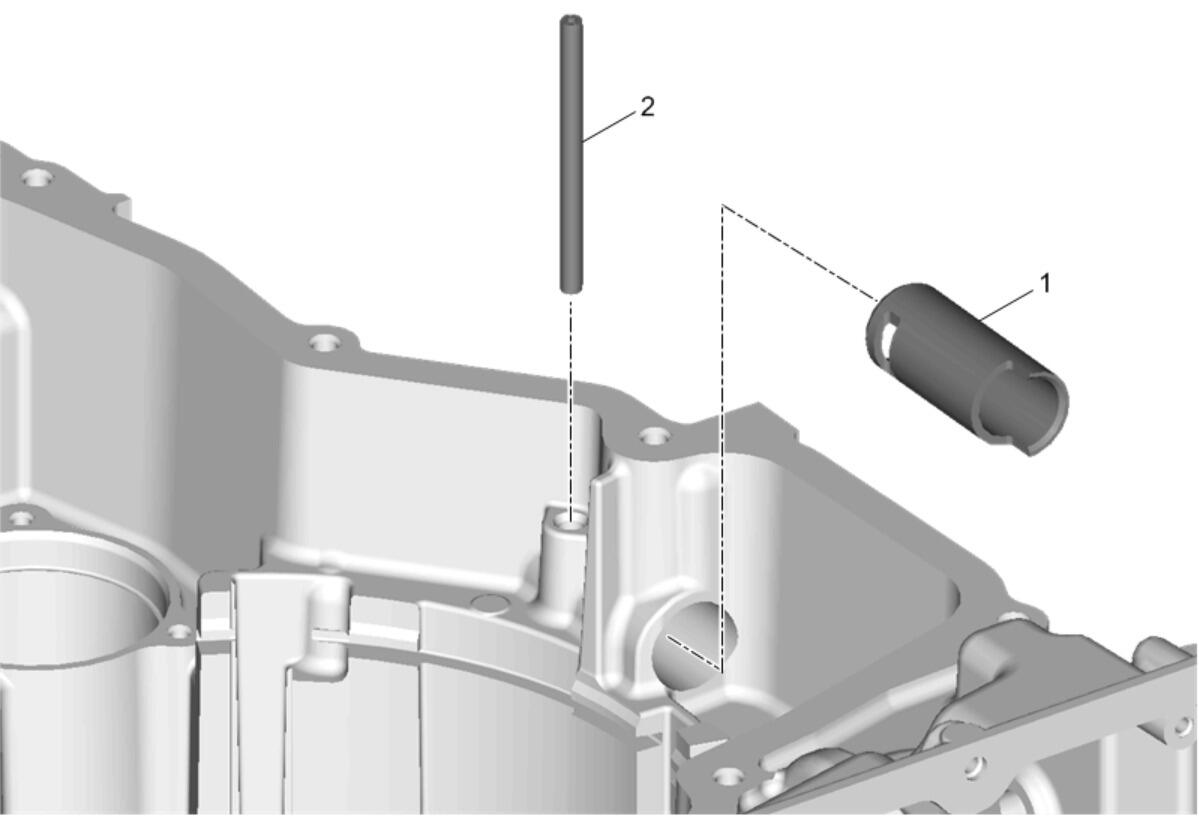

Callout	Component Name
1	Park Pawl Actuator Guide NOTE: Install park pawl actuator guide in proper orientation to allow pin to be fully installed. Failure to install properly can cause damage to guide or allow vehicle to not fully engage in park.
2	Park Pawl Actuator Guide Pin Procedure Install a NEW park pawl actuator guide pin. Install the park pawl actuator guide pin till bottoms out.

Callout

Component Name

Park Pawl Actuator Guide

NOTE:

Install park pawl actuator guide in proper orientation to allow pin to be fully installed. Failure to install properly can cause damage to guide or allow vehicle to not fully engage in park.

Park Pawl Actuator Guide Pin

Procedure

Install a NEW park pawl actuator guide pin.
Install the park pawl actuator guide pin till bottoms out.
