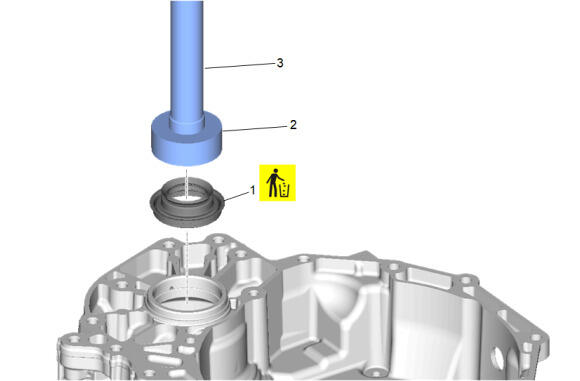

Front Wheel Drive Shaft Seal Installation - Torque Converter Housing Side

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Wheel Drive Shaft Oil Seal NOTE: Install a NEW seal. Do NOT reuse the old seal. Special Tools DT-47790 Seal Installer GE-8092 Driver Handle Equivalent regional tools: Special Tools .
