Park Gear and Output Carrier Hub Removal
WARNING: This page is about a different variant/trim than selected.
 Courtesy of GENERAL MOTORS COMPANY
|

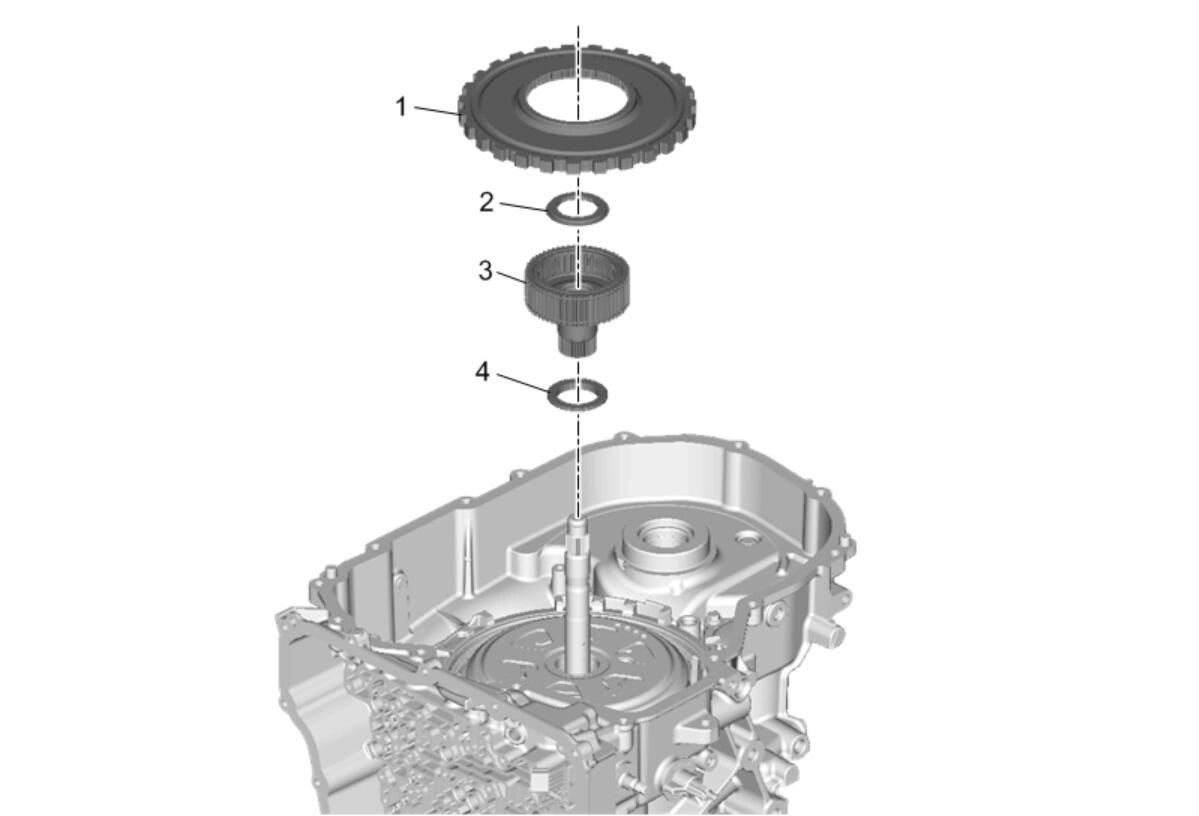

Park Gear and Output Carrier Hub Removal
| Callout |
Component Name |
| 1 |
Park Gear |
| 2 |
Output Sun Gear Thrust Bearing |
| 3 |
Output Carrier Transfer Drive Gear Hub |
| 4 |
Output Sun Gear Thrust Bearing |
