Drive Sprocket, Driven Sprocket, and Drive Link Removal

WARNING: This page is about a different variant/trim than selected.

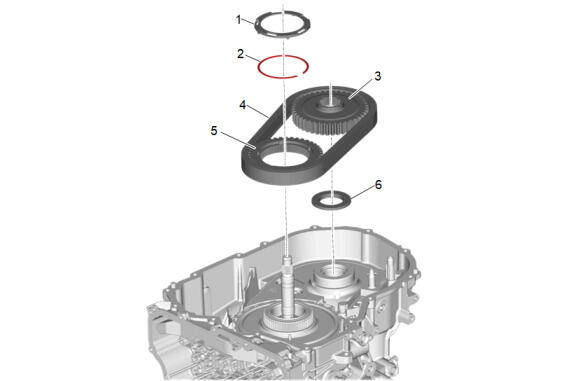

Fig 1: Exploded View Of Drive Sprocket, Driven Sprocket And Drive Link Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Drive Sprocket Thrust Washer
2	Drive Sprocket Retaining Ring
3	Driven Sprocket Procedure The driven sprocket (3), drive sprocket (5), and drive link (4) must be removed at the same time. The driven sprocket (3) ball bearing inner race has a slight interference fit with the case. Pull straight up to ease removal.
4	Drive Link
5	Drive Sprocket
6	Driven Sprocket Bearing NOTE: The driven sprocket (3) bearing may be stuck to the driven sprocket.
