Park Pawl and Front Differential Carrier Baffle Installation

WARNING: This page is about a different variant/trim than selected.

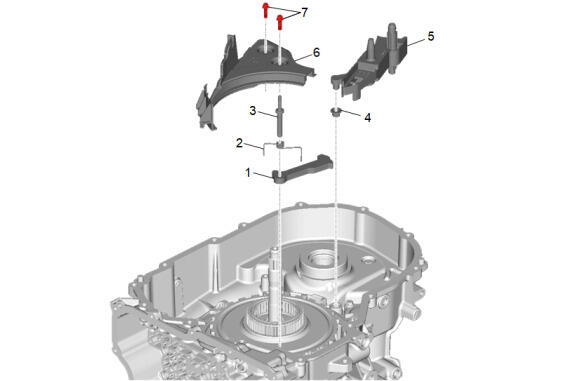

Fig 1: Exploded View Of Park Pawl And Front Differential Carrier Baffle Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Park Pawl
2	Park Pawl Spring
3	Park Pawl Shaft NOTE: Check to ensure that the park pawl operates freely and is not binding.
4	Drive Link Lubricant Fluid Seal NOTE: Install a NEW seal. Do NOT reuse the old seal.
5	Drive Link Lubricant Scoop
6	Front Differential Carrier Baffle
7	Front Differential Carrier Baffle Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 12 N.m (106 lb in)
